1. Bench pickup check
Start with representative parts, including the worst expected surface condition. Check pickup contact, peel risk, air gap, and any stacked-part behavior before approving the gripper concept.
← Back to Products
Magnetic Depalletizing Head
Magnetic heads for robot or gantry depalletizing of ferromagnetic parts, stacks, and containers.
Target Buyer:Best for integrators automating metal part depalletizing where part variation, stack height, and release sequence need review.
Capability Highlights
- Reviewed around stack variation and pickup orientation
- Can be integrated into robot or gantry tooling
- Useful when vacuum sealing is unreliable on metal surfaces
Typical Applications
- Depalletizing metal parts
- Stack unloading
- Line feeding
- Warehouse-to-cell transfer
Engineering Focus
- Stack height and part separation behavior
- Pickup angle, reach, and collision clearance
- Release confirmation and downstream placement
- Tool mass and gantry or robot capacity
Magnetic Depalletizing Head Buyer Decision Framework
Treat magnetic depalletizing head as a complete handling decision, not a stand-alone magnet purchase. The right choice depends on whether the workpiece can be held magnetically, whether the robot motion keeps enough margin, whether the part releases cleanly, and whether the installation scope is clear enough for quotation.
Buyer fit: Best for integrators automating metal part depalletizing where part variation, stack height, and release sequence need review. Before comparing price, align the practical constraints below so the quote reflects the real automation cell instead of a generic catalog condition.
| Decision Area | Buyer Question | Practical Evidence |
|---|---|---|
| Workpiece fit | Can the magnetic poles contact enough real surface area under production conditions? | Send part material, dimensions, weight, and typical pallet or bin arrangement plus photos or drawings of the pickup face. |
| Motion margin | Will the gripper hold through acceleration, rotation, off center pickup, and stop conditions? | Review stack variation because depalletizing needs tolerance for changing pickup height, alignment, and part exposure. |
| Release behavior | Can the part release within the placement tolerance without residual magnetism, double pickup, or stack disturbance? | Define sample acceptance criteria around release confirmation and record the release test result before batch release. |
| Interface scope | Are the flange, adapter, cable, connector, controller, and documentation assumptions included in the same RFQ? | Confirm stack height and part separation behavior and list any custom mounting or control requirements before PO release. |
Validation Plan Before product selection
2. Robot-path check
Test the planned orientation, acceleration, tool center, cable route, and stop assumptions. A static lift is not enough when the cell includes fast motion or rotated handling.
3. Release and repeat run
Measure release timing, residual magnetism, placement tolerance, and repeatability across a small run. Use the result to freeze pole layout, interface, and quality-control notes.
Procurement Notes and Boundaries
The most common sourcing mistake is treating holding force as a fixed catalog value. In practice, stack height or part alignment varies beyond the gripper approach tolerance. Map the real pallet variation range and confirm the magnetic head approach can handle worst-case height and offset. Another common issue is that multi-part pickup occurs when the magnetic field reaches through thin parts to adjacent layers. Test with production stack configurations to verify single-layer separation and define field boundary limits.
For a quote that can move from engineering review to procurement, include the workpiece file set, automation interface, cycle target, release requirement, quantity, destination, and any custom packaging or documentation needs. If those values are not final, mark them as assumptions so the quotation can separate confirmed scope from validation-dependent scope.
- Use Contact / RFQ when drawings, photos, robot model, and quantity are ready for review.
- Review sample validation and quality control if the application includes coating, oil, burrs, stack variation, or release precision risk.
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Stack variation | Defined by pallet, tray, or bin presentation | Depalletizing needs tolerance for changing pickup height, alignment, and part exposure. |
| Release confirmation | Validated in the transfer sequence | Reliable release protects cycle time and prevents double handling. |
RFQ Checklist
- Part material, dimensions, weight, and typical pallet or bin arrangement
- Stack height variation, part-to-part gap, and interlayer separator type
- Pickup angle, reach requirement, and collision clearance at the pallet edge
- Robot or gantry model, payload, and available tooling interface
- Throughput target, shift pattern, and whether mixed parts share the same pallet
Risk Controls
- Stack height or part alignment varies beyond the gripper approach tolerance.: Map the real pallet variation range and confirm the magnetic head approach can handle worst-case height and offset.
- Multi-part pickup occurs when the magnetic field reaches through thin parts to adjacent layers.: Test with production stack configurations to verify single-layer separation and define field boundary limits.
- Release position accuracy drifts as cycle speed increases.: Validate placement repeatability at target throughput, not only at reduced speed during commissioning.

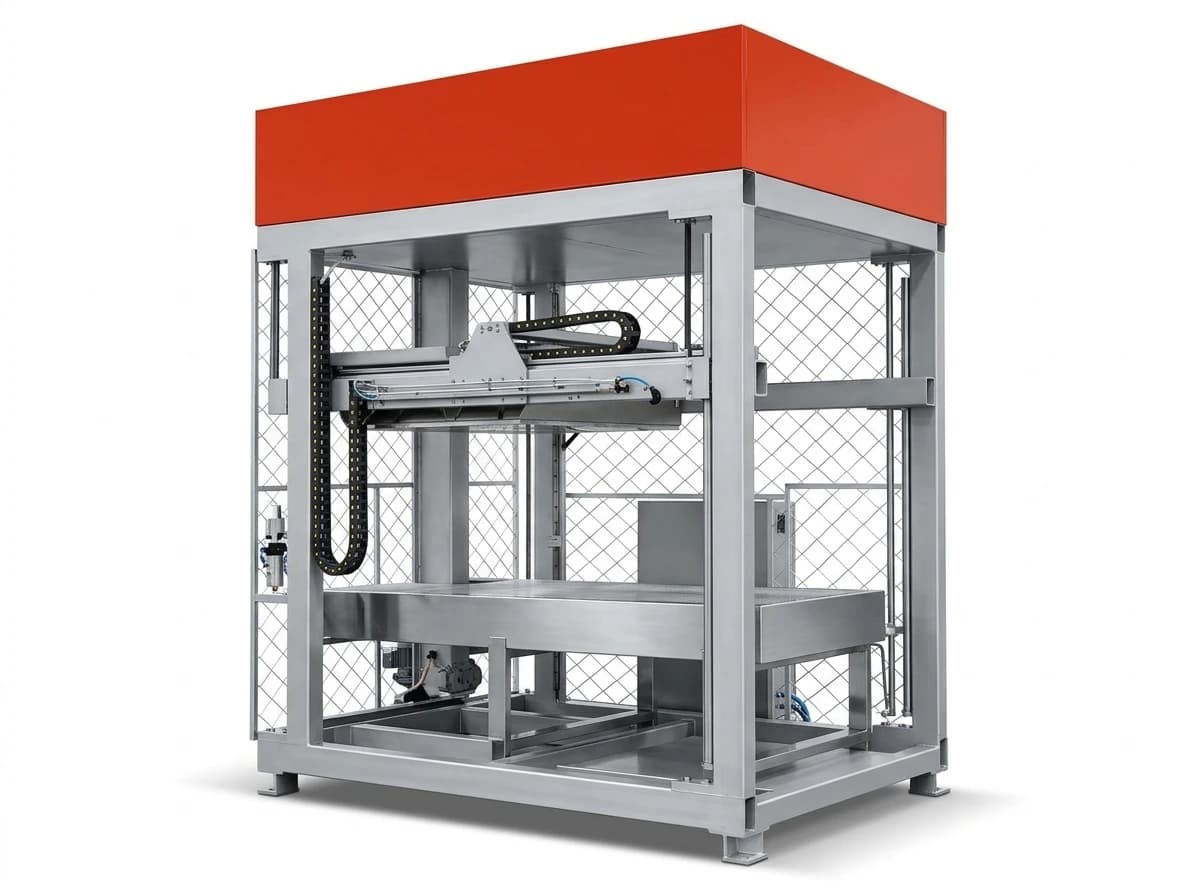

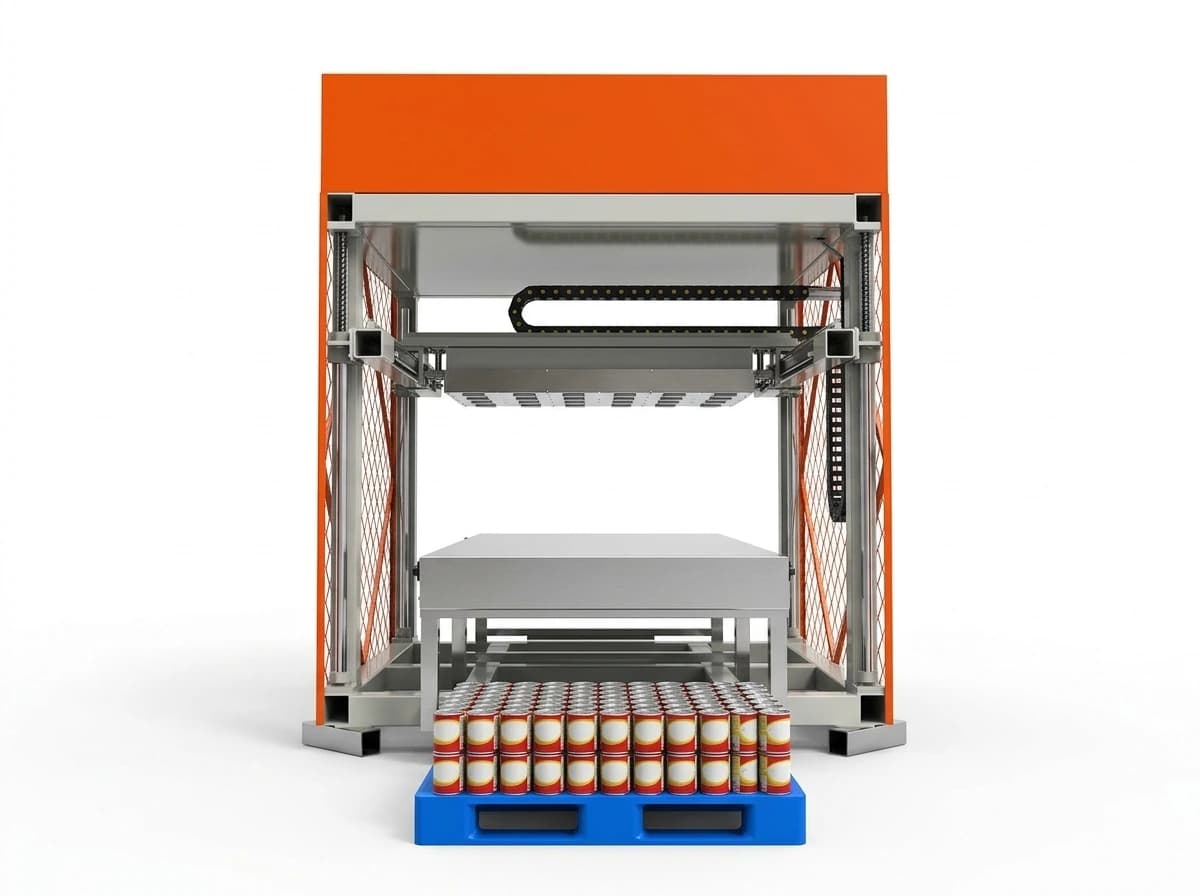

Product Gallery
Buyer FAQ
Can magnetic depalletizing work with mixed-part pallets?
It depends on part size, weight, and presentation consistency. Mixed pallets usually need vision guidance or a flexible approach strategy in addition to the magnetic head.
How does the gripper handle interlayer separators?
If separators are non-magnetic (cardboard, plastic), the magnetic head can often pick past them. Metal separators may require a separate removal step. Include separator details in the RFQ.
What throughput can a magnetic depalletizing head achieve?
Throughput depends on the robot speed, approach distance, release time, and downstream conveyor capacity. Send your target parts-per-minute for a feasibility check.
