1. Bench pickup check
Start with representative parts, including the worst expected surface condition. Check pickup contact, peel risk, air gap, and any stacked-part behavior before approving the gripper concept.
← Back to Solutions
Sheet Metal Handling
Magnetic gripping support for steel sheet, blanks, plates, and flat ferromagnetic parts.
Target Buyer:For manufacturing engineers and integrators building sheet metal transfer cells.
Solution Highlights
- Review sheet thickness, flex, coating, oil, and burrs
- Support single or multi-magnet EOAT concepts
- Useful when vacuum sealing or mechanical clamping is unstable
Common Use Cases
- Sheet loading
- Blank transfer
- Plate handling
Implementation Focus
- Single-sheet pickup behavior
- Surface state and air gap
- Release timing and placement accuracy
Sheet Metal Handling Buyer Decision Framework
Treat sheet metal handling as a complete handling decision, not a stand-alone magnet purchase. The right choice depends on whether the workpiece can be held magnetically, whether the robot motion keeps enough margin, whether the part releases cleanly, and whether the installation scope is clear enough for quotation.
Buyer fit: For manufacturing engineers and integrators building sheet metal transfer cells. Before comparing price, align the practical constraints below so the quote reflects the real automation cell instead of a generic catalog condition.
| Decision Area | Buyer Question | Practical Evidence |
|---|---|---|
| Workpiece fit | Can the magnetic poles contact enough real surface area under production conditions? | Send sheet material grade, thickness range, and maximum sheet dimensions plus photos or drawings of the pickup face. |
| Motion margin | Will the gripper hold through acceleration, rotation, off center pickup, and stop conditions? | Review sheet condition because sheet condition directly affects grip reliability and release behavior. |
| Release behavior | Can the part release within the placement tolerance without residual magnetism, double pickup, or stack disturbance? | Define sample acceptance criteria around sheet condition and record the release test result before batch release. |
| Interface scope | Are the flange, adapter, cable, connector, controller, and documentation assumptions included in the same RFQ? | Confirm single-sheet pickup behavior and list any custom mounting or control requirements before PO release. |
Validation Plan Before application validation
2. Robot-path check
Test the planned orientation, acceleration, tool center, cable route, and stop assumptions. A static lift is not enough when the cell includes fast motion or rotated handling.
3. Release and repeat run
Measure release timing, residual magnetism, placement tolerance, and repeatability across a small run. Use the result to freeze pole layout, interface, and quality-control notes.
Procurement Notes and Boundaries
The most common sourcing mistake is treating holding force as a fixed catalog value. In practice, vacuum cups mark, dimple, or fail to seal on oily or perforated sheet surfaces. Use this as a starting indicator for magnetic gripping review, but validate the magnetic alternative on the same problem sheets. Another common issue is that sheet flex during transfer causes the part to peel away from the magnetic poles. Review sheet stiffness at the unsupported span and adjust pole spacing or add support brackets if the sheet sags more than the air-gap tolerance.
For a quote that can move from engineering review to procurement, include the workpiece file set, automation interface, cycle target, release requirement, quantity, destination, and any custom packaging or documentation needs. If those values are not final, mark them as assumptions so the quotation can separate confirmed scope from validation-dependent scope.
- Use Contact / RFQ when drawings, photos, robot model, and quantity are ready for review.
- Review sample validation and quality control if the application includes coating, oil, burrs, stack variation, or release precision risk.
Application Evaluation Matrix
| Evaluation Metric | Typical Range | Buyer Relevance |
|---|---|---|
| Sheet condition | Dry, oily, coated, burred, flexible, or stacked | Sheet condition directly affects grip reliability and release behavior. |
RFQ Preparation Checklist
- Sheet material grade, thickness range, and maximum sheet dimensions
- Surface condition: stamping oil type, e-coat, galvanized, pickled, or bare
- Stack height, sheet-to-sheet gap, and acceptable double-pick rate
- Transfer method: robot, gantry, linear unit, or manual magnetic lifter
- Production volume per shift and required cycle time per sheet
Risk and Mitigation
- Vacuum cups mark, dimple, or fail to seal on oily or perforated sheet surfaces.: Use this as a starting indicator for magnetic gripping review, but validate the magnetic alternative on the same problem sheets.
- Sheet flex during transfer causes the part to peel away from the magnetic poles.: Review sheet stiffness at the unsupported span and adjust pole spacing or add support brackets if the sheet sags more than the air-gap tolerance.
- Mixed SKU runs change thickness, size, or coating between sheets on the same line.: Map the full SKU range and test the gripper against the weakest magnetic response in the mix.
Recommended Products
Buyer FAQ
When should I switch from vacuum to magnetic for sheet handling?
Consider switching when vacuum cups slip on oil, lose seal on burrs or holes, or leave marks on finished surfaces. Magnetic gripping avoids seal dependence but requires ferromagnetic material and enough contact area.
Can the same gripper handle different sheet sizes?
A multi-pole array can often cover a range of sizes. The limiting factor is usually the smallest sheet in the mix, which may not provide enough contact area for stable holding.
How do you prevent double-sheet pickup?

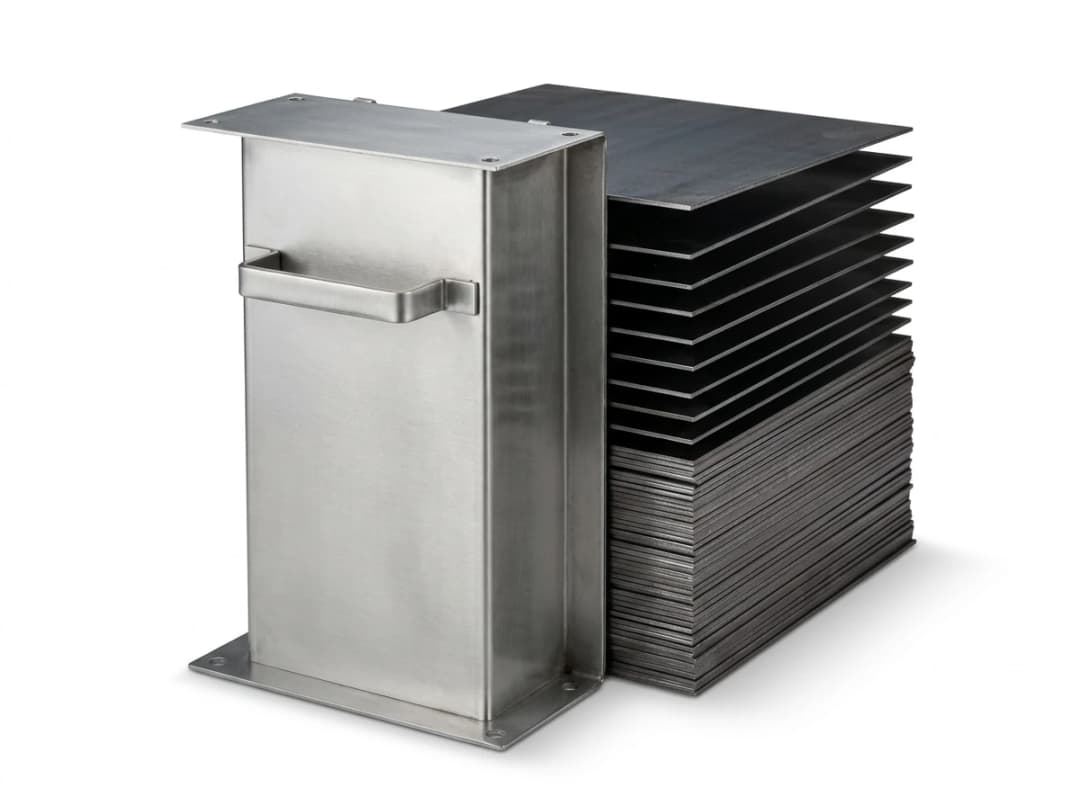

Pole geometry, magnetization depth control, and sometimes mechanical sheet fanning or air-blow separators work together. The right approach depends on sheet thickness, oil, and stacking pressure.
