1. Bench pickup check
Start with representative parts, including the worst expected surface condition. Check pickup contact, peel risk, air gap, and any stacked-part behavior before approving the gripper concept.
← Back to Products
Electro-Permanent Magnetic Gripper
Energy-efficient magnetic gripping for ferromagnetic parts where holding should remain stable after magnetization.
Target Buyer:Best for integrators and OEM teams that need secure magnetic holding with controlled release in repeatable automation cells.
Capability Highlights
- Low-energy hold after switching
- Useful for robot handling and EOAT modules
- Configurable pole layout, interface, and release behavior
Typical Applications
- Sheet metal transfer
- Robot pick-and-place
- Machine tending
- Palletizing and depalletizing
Engineering Focus
- Pole contact area and air-gap tolerance
- Workpiece thickness and magnetic permeability
- Release timing, residual magnetism, and safety review
- Controller signal, cable routing, and robot interface
Electro-Permanent Magnetic Gripper Buyer Decision Framework
Treat electro-permanent magnetic gripper as a complete handling decision, not a stand-alone magnet purchase. The right choice depends on whether the workpiece can be held magnetically, whether the robot motion keeps enough margin, whether the part releases cleanly, and whether the installation scope is clear enough for quotation.
Buyer fit: Best for integrators and OEM teams that need secure magnetic holding with controlled release in repeatable automation cells. Before comparing price, align the practical constraints below so the quote reflects the real automation cell instead of a generic catalog condition.
| Decision Area | Buyer Question | Practical Evidence |
|---|---|---|
| Workpiece fit | Can the magnetic poles contact enough real surface area under production conditions? | Send workpiece material grade, magnetic permeability, and heat treatment condition plus photos or drawings of the pickup face. |
| Motion margin | Will the gripper hold through acceleration, rotation, off center pickup, and stop conditions? | Review holding force because the selected magnetic circuit must match workpiece geometry, material, motion, and safety factor. |
| Release behavior | Can the part release within the placement tolerance without residual magnetism, double pickup, or stack disturbance? | Define sample acceptance criteria around release behavior and record the release test result before batch release. |
| Interface scope | Are the flange, adapter, cable, connector, controller, and documentation assumptions included in the same RFQ? | Confirm pole contact area and air-gap tolerance and list any custom mounting or control requirements before PO release. |
Validation Plan Before product selection
2. Robot-path check
Test the planned orientation, acceleration, tool center, cable route, and stop assumptions. A static lift is not enough when the cell includes fast motion or rotated handling.
3. Release and repeat run
Measure release timing, residual magnetism, placement tolerance, and repeatability across a small run. Use the result to freeze pole layout, interface, and quality-control notes.
Procurement Notes and Boundaries
The most common sourcing mistake is treating holding force as a fixed catalog value. In practice, switching pulse does not fully magnetize or demagnetize the circuit under production conditions. Validate switching behavior on real workpieces, not only clean lab samples, before freezing controller settings. Another common issue is that residual magnetism after release attracts chips, affects downstream processes, or causes stacking errors. Measure residual field on representative parts and define acceptable limits before batch production.
For a quote that can move from engineering review to procurement, include the workpiece file set, automation interface, cycle target, release requirement, quantity, destination, and any custom packaging or documentation needs. If those values are not final, mark them as assumptions so the quotation can separate confirmed scope from validation-dependent scope.
- Use Contact / RFQ when drawings, photos, robot model, and quantity are ready for review.
- Review sample validation and quality control if the application includes coating, oil, burrs, stack variation, or release precision risk.
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Holding force | Application-dependent after workpiece review | The selected magnetic circuit must match workpiece geometry, material, motion, and safety factor. |
| Release behavior | Validated with representative samples | Residual magnetism and surface condition can affect cycle time and part placement. |
| Robot interface | Configured to robot, cobot, or gantry requirements | Adapter plate, cable routing, and control signals affect installation time and reliability. |
RFQ Checklist
- Workpiece material grade, magnetic permeability, and heat treatment condition
- Contact area dimensions, surface coating thickness, oil film, and air-gap estimate
- Required hold duration, switching cycle, and power-loss behavior expectation
- Controller voltage, signal type, cable length, and robot or gantry interface
- Quantity, sample availability, destination country, and OEM labeling needs
Risk Controls
- Switching pulse does not fully magnetize or demagnetize the circuit under production conditions.: Validate switching behavior on real workpieces, not only clean lab samples, before freezing controller settings.
- Residual magnetism after release attracts chips, affects downstream processes, or causes stacking errors.: Measure residual field on representative parts and define acceptable limits before batch production.
- Power-loss behavior is assumed to be safe without testing the actual hold-state retention.: Test and document what happens to the workpiece during power loss, emergency stop, and manual recovery.

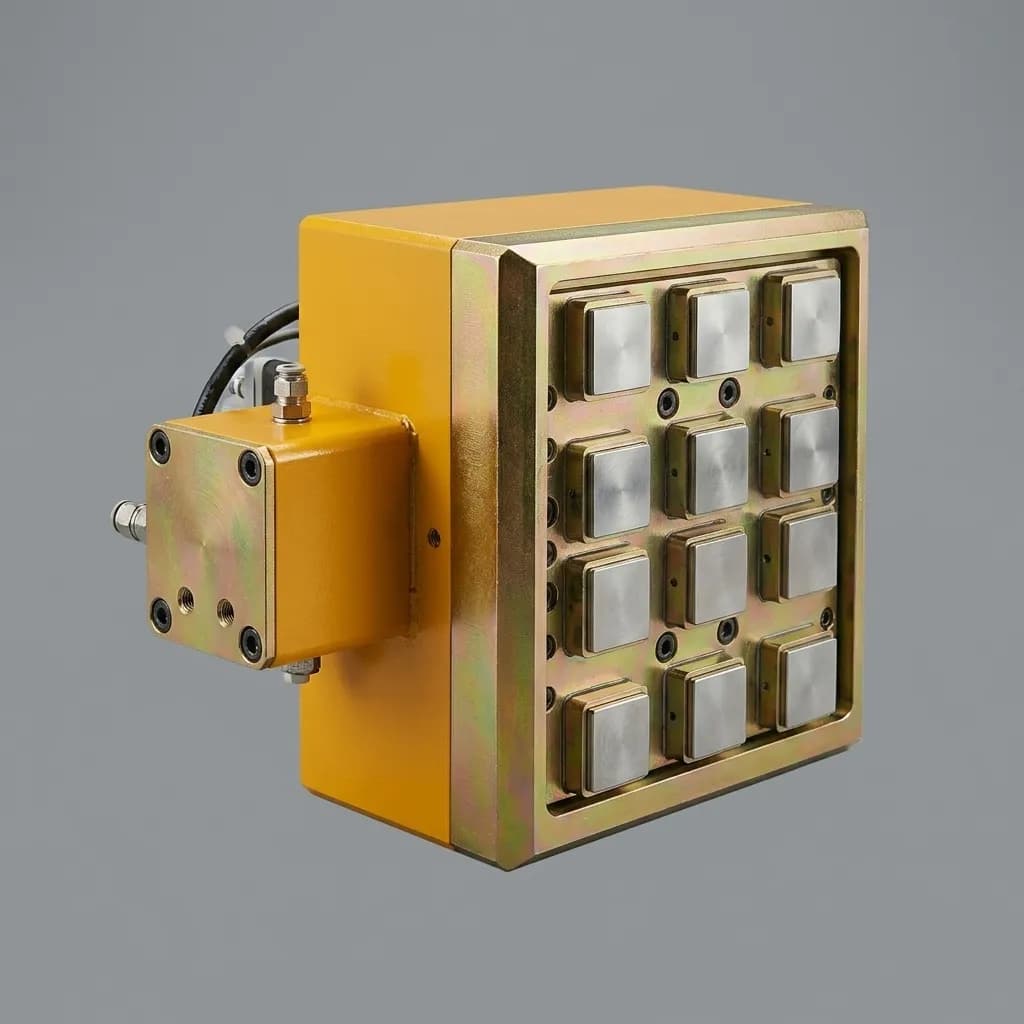

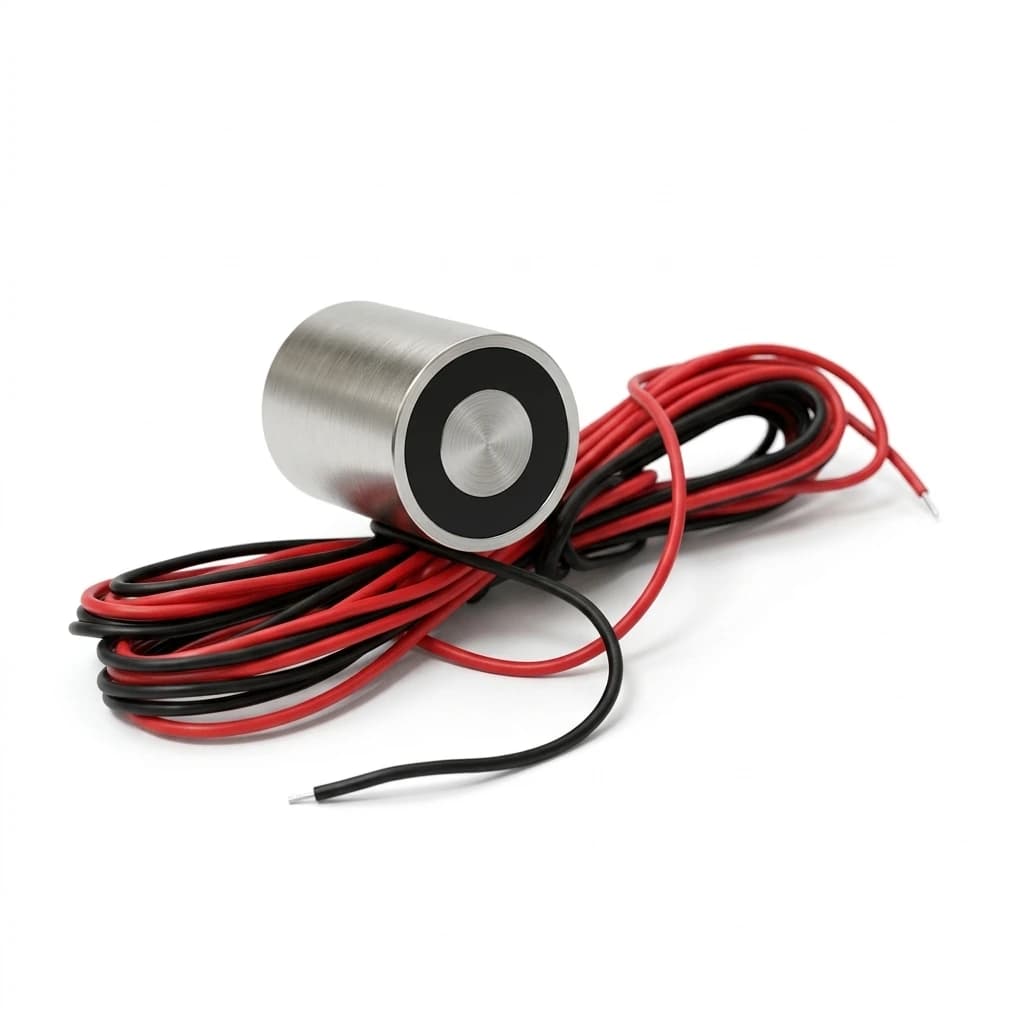

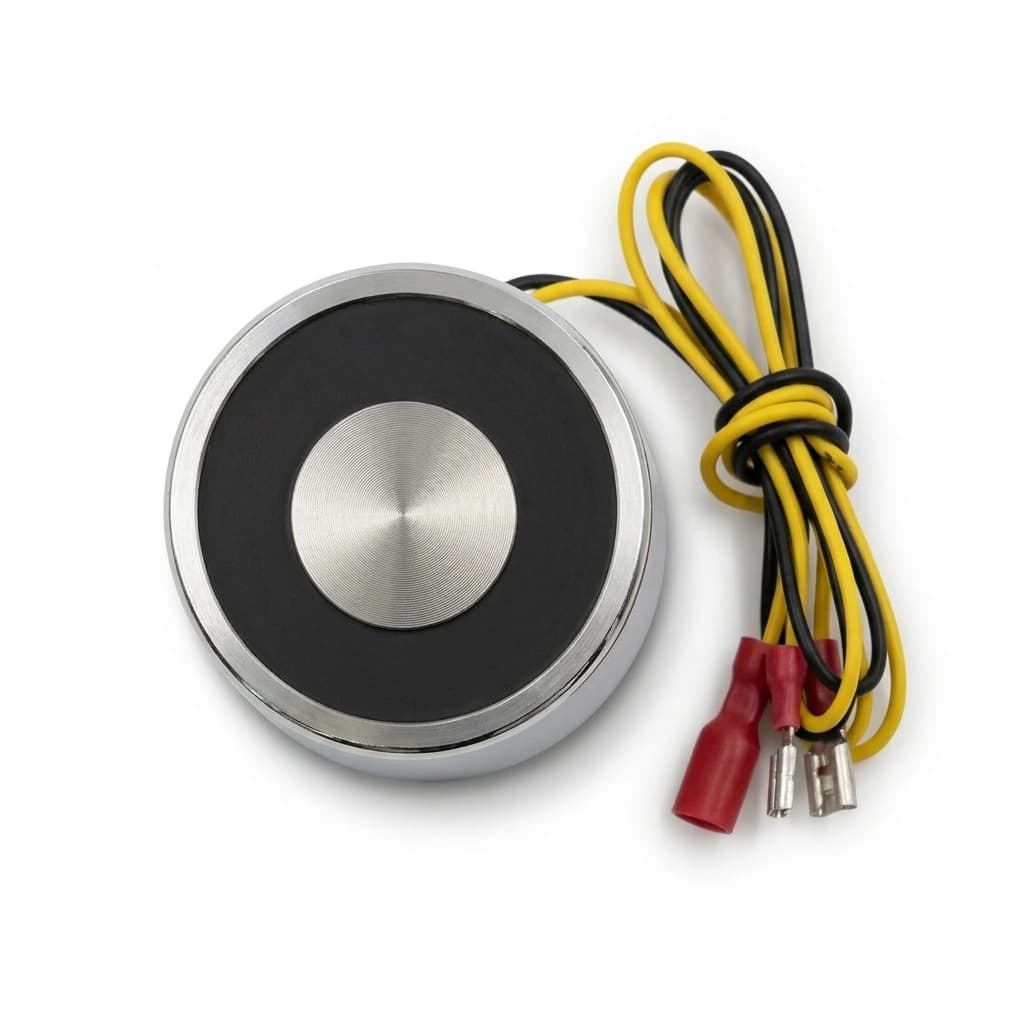

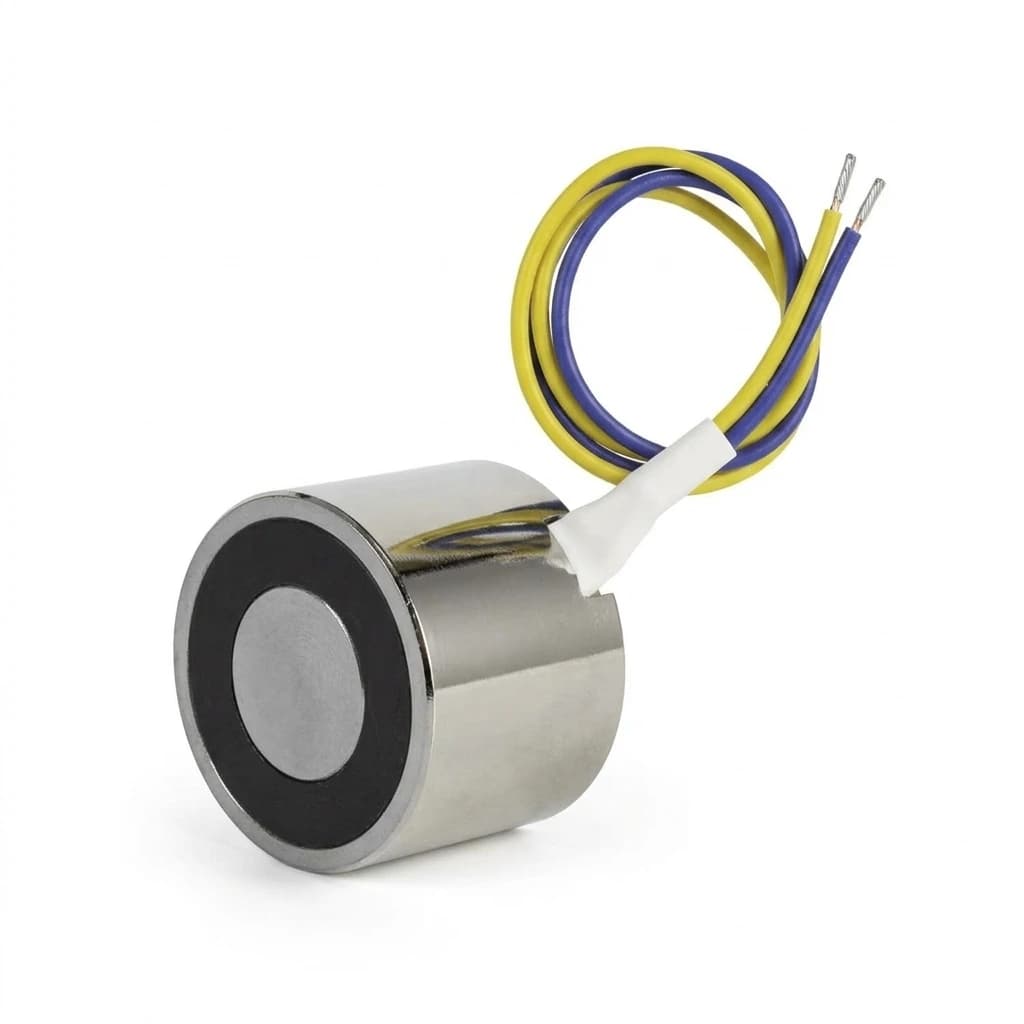

Product Gallery
Buyer FAQ
Does an electro-permanent gripper hold without continuous power?
In many designs, holding remains after the switching pulse. The exact retention behavior depends on the magnetic circuit, workpiece, and controller. Validate with your application before relying on this property.
How is residual magnetism controlled after release?
The demagnetization pulse reduces residual field, but the result depends on material, thickness, and air gap. Measure residual magnetism on representative parts to confirm it meets your process tolerance.
What controller and cable scope should be included in the RFQ?
Specify voltage, signal type, cable length, bend path, connector style, and whether the controller mounts on the EOAT, robot arm, or panel. Unclear scope often delays commissioning.
