What automated and autonomous machine tending systems and applications are covered here?

The main applications of automated and autonomous machine tending covered include CNC load and unload, fixture loading, cast iron bracket handling, steel gear tending, valve body tending, and other ferromagnetic part-transfer cases that need EOAT sizing, clearance review, and safety validation.

Can these magnetic grippers fit on Ace Designers CNC machines for Ace machine tending?

They can be a candidate for Ace Designers lathes and Ace Micromatic machining centers when the workpiece is ferromagnetic and the EOAT clears the chuck, fixture, door, and robot wrist path. Final fit still requires the current machine specification, CAD envelope, chuck or fixture drawings, and interlock review.

Can a magnetic gripper load parts into a CNC chuck?

Yes, if the part is ferromagnetic and the gripper can reach into the machine without collision. The gripper must release cleanly and retract before the chuck closes.

How do chips and coolant affect magnetic gripping in machine tending?

Loose chips create air gaps that reduce force; coolant films are usually thin enough to tolerate. Test with post-machining parts to confirm reliable pickup and release.

What robot reach is needed for CNC machine tending?

Reach depends on the machine door opening, fixture depth, and part bin location. Compact magnetic grippers help because their low profile allows deeper entry into tight machine enclosures.

← Back to Solutions

Automated & Autonomous Machine Tending Systems & Solutions

Automated & Autonomous Machine Tending Systems: Robot Application Analyzer

Configure your workpiece and verify feasibility for automated machine tending systems and solutions. Enter workpiece, material, and surface parameters to see estimated holding force and clearance advice.

Open sizing calculator Review automated and autonomous machine tending systems

Outputs force, feasibility, timing, and RFQ actions.

Shows assumptions, safety limits, and source dates.

Intent coverage: This single canonical page covers automated and autonomous machine tending solutions through the calculator, application scenarios, evidence tables, and validation steps. Ace Designers and Ace Micromatic appear only as CNC examples where machine envelope checks change the decision.

Grip Feasibility & Sizing Calculator

Configure workpiece, environment, and CNC machine data to screen magnetic gripping feasibility before a formal engineering review.

Workpiece Weight (kg)

8 kg

0.1 kg60 kg120 kg

Workpiece Material

Surface State

Part Geometry

Max Robot Acceleration

Target CNC Machine Model

Select Ace context when you need the output to emphasize chuck, table, door, and fixture-envelope checks. This does not select a finished bracket size without drawings.

Screening estimate only. Final magnetic sizing, safety category, and CNC clearance must be verified with the actual workpiece, EOAT drawings, machine envelope, and cell risk assessment.

Feasibility Evaluation

Highly Feasible

Required holding force (with Safety)

628Newtons

Dynamic model: 1.5g x safety margin 4x

Spindle Clearance

No radial fingers in the chuck zone. Single-face magnetic pickup can reduce mechanical jaw interference, but the full EOAT envelope still needs CAD path validation.

Power-Loss Behavior

E-permanent hold state. Properly selected EPM tooling can maintain holding force without continuous coil power; final safety performance depends on the cell risk assessment.

Cycle Takt Savings

Modelled as a few seconds per load/unload path. The saving comes from simpler approach geometry and fewer finger-clearance moves, not from faster CNC processing.

Residual Field Check

Measure after release. Demagnetization quality is a commissioning test item, especially for powertrain parts where chips and cleanliness limits matter.

Visual Proof & Timing Metrics

Clearance Comparison & Cycle Time Analysis

See how single-surface magnetic tooling avoids mechanical chuck collisions and shortens robot trajectory timing.

Cycle Time Sequence Breakdown

Illustrative magnetic vs mechanical grip path duration comparison. Replace these example timings with robot and CNC data before ROI use.

Ace Designers Spindle Clearance Envelopes

How removing mechanical gripper fingers from the chuck zone can reduce spindle jaw collision risk.

B2B Engineering Report: Automated & Autonomous CNC Machine Tending & Magnetic Grippers Flux Parameters

Detailed boundary conditions, calibration tables, and comprehensive engineering analysis for robot machine tending cells. Treat the figures as planning ranges until they are checked against your parts, tooling, robot path, and CNC envelope.

Path-Time Model

Application-Specific Timing

The calculator estimates approach-path opportunity only. OEE or payback must be modeled from your own cycle logs, downtime causes, labor coverage, and scrap data.

Plant Data Required

ROI Payback Method

Use current labor coverage, unattended hours, uptime loss, scrap, rework, maintenance, and quoted integration cost. This page does not claim a universal automated machine tending payback window.

ISO 10218

Safety Compliance

Requires full cell risk assessment, especially when deploying collaborative robots (ISO/TS 15066) with magnetic tools.

Model Assumptions & Decision Limits

What this page can screen immediately, and what must still be verified before a production machine tending cell, including model-specific lathe or VMC projects, is released.

Claim	Page Status	Verification Boundary
Required holding force	Calculated screening valueMass x 9.81 x dynamic factor x safety factor, then derated by material and surface factors selected in the calculator.	Does not replace tear-off testing on the final pole layout, contact patch, coolant state, and robot path.
Takt-time savings	Scenario modelCompares simplified magnetic front-face pickup with a mechanical finger path that needs extra chuck-clearance moves.	Actual savings depend on door timing, chuck confirmation, robot reach, safe speed limits, and fixture seating checks.
Residual field target	Quality target to define, not a universal pass/fail numberUsed as a planning prompt for magnetometer inspection after release when chips or downstream cleanliness matter.	Final acceptance limit must come from the customer quality plan, not this page.
Ace machine compatibility	Scenario-specific model-family screeningPublic Ace Micromatic product pages identify relevant lathe and VMC families to review when the selected application involves Ace equipment.	Final fit requires current machine catalog data, option lists, chuck/fixture drawings, and cell CAD; Ace coverage is a scenario example, not the page intent.
ROI and OEE effect	Project-specific business-case modelPublic robotic machine tending ROI guidance treats labor coverage, uptime, scrap/rework, safety exposure, integration cost, maintenance, and redeployment value as inputs rather than fixed page-level constants.	Use current cell cycle logs, fully burdened labor rates, downtime causes, scrap data, maintenance plan, and quoted hardware plus integration cost before making an investment decision.
Market adoption context	2024 IFR installation baselineIFR World Robotics 2025 reports 542,000 industrial robot installations in 2024 and more than 4.6 million industrial robots in operation worldwide.	The installation baseline shows automation adoption context only. It does not prove that a specific automated machine tending project is technically or financially viable.

Source Traceability

Public standards and OEM pages used to define the report boundary. Time-sensitive references are marked with the review date.

Topic	Source	How It Is Used
Industrial robot installation baseline	IFR World Robotics 2025 press releaseChecked July 27, 2026	Provides the current public baseline that 542,000 industrial robots were installed worldwide in 2024; application fit still depends on plant-specific process data.
Robot flange interface	ISO 9409-1:2004Checked July 27, 2026	Frames adapter-plate review for circular robot wrist interfaces; final PCD and load limits come from the selected robot datasheet.
Collaborative robot safety context	ISO/TS 15066:2016Checked July 27, 2026	Supports the warning that a magnetic gripper alone does not make a cobot cell compliant.
Industrial robot cell safety context	ISO 10218-2:2025Checked July 27, 2026	Used as a current safety-family reference for robot applications and cells before plant-specific risk assessment.
Ace lathe family boundary	Ace Micromatic LT-20 C Classic product pageChecked July 27, 2026	Anchors Ace Designers LT-20 coverage, including public chuck and nose values; option, door, and fixture dimensions must still be confirmed from current project drawings.
Autonomous machine tending validation boundary	N/A - project FAT/SAT and plant cycle logs requiredEvidence gap noted July 27, 2026	No universal public cycle-speed or scrap-reduction percentage is applied. Validate autonomy with dated cycle logs, vision retry data, rejection records, and safety validation records for the specific cell.
Ace Micromatic Robotics Ecosystem	Ace Designers & Twara Robotics Strategic PartnershipChecked July 27, 2026	Confirms that Ace Micromatic actively supports cobot and robotic tending integrations through its Marketing & Service Division partnership with Twara Robotics.
Ace VMC medium table context	Ace Micromatic MCV-400 XL product pageChecked July 27, 2026	Anchors Ace Micromatic VMC coverage for fixture-loading review; actual table, pallet, and guarding options still need confirmation.
Robotic machine tending ROI method	Mitsubishi Electric US ROI equation for robotic machine tendingChecked July 27, 2026	Frames ROI as a plant-specific equation using cost, labor savings, productivity, quality, and operating assumptions instead of a universal payback claim.
Robot investment payback inputs	Universal Robots ROI and payback period guidanceChecked July 27, 2026	Supports the warning that a payback calculation should include total robot investment, accessories, integration, maintenance, and longer-term operational value.
Ace VMC large machine context	Ace Micromatic MCV-550 L product pageChecked July 27, 2026	Supports the large-VMC scenario boundary, including public table and spindle-taper context; it is not a substitute for the customer machine specification sheet.
Robot installation outlook boundary	IFR World Robotics 2025 press release outlookChecked July 27, 2026	Frames global industrial robot adoption context only. The page does not use a machine-tending-specific CAGR or universal payback claim because those require project quotes and plant data.

Material Permeability Correction Matrix

Steel alloy variants require calibration due to changing carbon levels and flux saturation.

Workpiece Material	Holding Force Ratio	Engineering Impact & Advice
Mild Steel (1018 / 1020 / 1045)	Nominal baseline (Factor: 1.0)	Optimal magnetic circuit path. Maximum holding force achieved.
High Carbon Steel (O1 / A2 / D2)	90% (Factor: 0.9)	Slightly higher residual magnetism; requires demagnetization cycle.
Alloy Steel (4140 / 8620)	80% (Factor: 0.8)	Requires calibration of demag pulse to prevent minor part stick.
Cast Iron (Grey / Ductile)	55% (Factor: 0.55)	Internal carbon flakes interrupt flux path. Size up gripper.
Austenitic Stainless (304 / 316)	0% (Factor: 0.0)	Austenitic structure is non-magnetic. MUST use mechanical/vacuum jaws.

Operational Risk Assessment & Mitigation Matrix

Industrial hazards identified in robot machine tending and corresponding engineering controls.

Operational Hazard	Risk & Impact	Engineering Mitigation Method
Surface Oil, Coolant & Inertial Slippage	Can reduce lateral shear margin. High-speed robot maneuvers can cause workpiece inertia to overcome holding force, leading to dropped parts.	Review V-groove pole layout, use a conservative safety margin in screening, add pneumatic air-blast pre-wipe where chips collect, and integrate presence-detection sensors before robot motion.
Workpiece Retaining Residual Magnetism	Sticking to downstream fixtures or attracting chips	Use an active reverse-demagnetization controller pulse. Add magnetometer QA and define the residual-field acceptance limit in the project quality plan.
Thin Sheet Co-flux Saturation (<3mm)	Double workpiece pickup hazard	Use magnetic shunts, tune switching energy from the selected controller datasheet, and add mechanical stripper pins or peeling motion during pick sequence.
Thermal Demagnetization Outside Magnet Grade Limit	Possible permanent force loss if the selected magnet grade is exposed above its rated temperature.	For hot-part tending, select the magnet material and insulation grade from the supplier datasheet and validate force after representative heat exposure.
Part Misalignment at Chuck Insertion	Defective tool seating or spindle collisions	Integrate spring-loaded compliance mechanical brackets (allowing ±2mm misalignment cushion) and tool-seated air-gap confirmation sensors.
Power Disconnection during Robot Travel	Part drop resulting in damage or injury	Evaluate electro-permanent systems that retain magnetic state without continuous coil power, then validate holding force, diagnostics, and stop behavior against the cell risk assessment.

Electro-Permanent Magnet Principle

Showing the magnetized state retaining hold without continuous coil power.

Emergency Stop Holding Logic

Process flow showing how retained magnetic state can support a controlled stop during sudden power interruptions.

Key Applications of Automated CNC Machine Tending

Representative scenarios showing when magnetic tending can improve clearance, gripping reliability, or payload margin. Validate each case with your actual part samples and machine layout.

Ace LT-20 Lathe

Automating Steel Gears

Scenario: Automotive gear manufacturer

Challenge: Heavy tool interference between mechanical gripper fingers and chuck jaws. Spindle loading collisions caused frequent line halts.

Screening response: Review a low-profile EPM module concept with localized air purge and a CAD envelope check.

Planning outcome: collision risk moves from gripper fingers to EOAT envelope validation. The model flags a possible path-time reduction that must be validated against door, chuck, and robot timing.

Ace MCV-400 VMC

Cast Iron Bracket Loading

Scenario: Industrial pump foundry

Challenge: Vacuum suction cups failed to hold grey cast iron due to surface roughness and fine sand dust.

Screening response: Review a larger EPM pole layout with spring-loaded V-pole adapters for uneven surfaces.

Planning outcome: magnetic pickup becomes a candidate because vacuum sealing is weak. Sample testing must confirm dust, sand, and surface roughness limits.

High Speed Cobot

Valve Body Machining

Scenario: Hydraulics valve supplier

Challenge: Cobot payload was limited to 10kg, and mechanical claws were too heavy, leaving only 2kg of usable margin.

Screening response: Compare a compact magnetic module concept against mechanical claw mass and wrist moment.

Planning outcome: lower EOAT mass can recover payload margin. Collaborative operation still requires a full speed, force, and guarding review.

2024–2025 Industry Data

Machine Tending Robot Market & Boundary Conditions

Based on recent industry reporting (including IFR World Robotics 2025 statistics reporting roughly 542,000 industrial robot installations in 2024 and an outlook of 575,000 installations in 2025), machine tending remains a major robot application family for CNC loading, fixture loading, and metal-part transfer. These figures are adoption context, not proof that a specific machine-tending system has a fixed CAGR, payback, or OEE result. The screening value comes from matching each application to material, clearance, surface, and safety boundaries.

Ideal Conditions

Material: Low-carbon steel, cast iron, and high-permeability ferrous alloys.
Surface Finish: Machined or relatively smooth (Roughness Rz < 50µm).
Temperature: Standard-temperature parts within the selected magnet and seal datasheet limits.
Geometry: Flat or predictable cylindrical surfaces allowing V-pole bridging.

High Risk / Inapplicable

Material: Aluminum, Titanium, Austenitic Stainless Steel (non-magnetic).
Surface Finish: Heavy casting scale, thick rust, or loose sand (Air gap > 1mm reduces holding force by up to 80%).
Temperature: Hot-part applications outside the selected magnet, cable, and seal datasheet limits.

Key Trade-Offs

Payload vs. Safety: Magnetic grippers save weight compared with mechanical claws, recovering cobot payload margin, but require validated dynamic safety factors.
Cleanliness: Magnetic poles attract swarf and iron filings; pneumatic blow-off integration is mandatory for reliable long-term CNC tending.

Data & Evidence

ROI & OEE: This page does not claim a universal payback window. Model ROI from plant-specific cycle logs, available unattended hours, operator coverage, scrap rate, downtime causes, and quoted hardware plus integration cost.
Safety: Mandatory cell-level risk assessments must align with ISO 10218-1/2 (industrial) and ISO/TS 15066 (collaborative).

Sources: IFR World Robotics 2025 and ISO 10218/15066 frame the market and safety context. ROI remains a project calculation that must use plant data and supplier quotes.

System Planning (Updated 2026-07)

Automated & Autonomous CNC Machine Tending Systems & Solutions: ROI, Sizing, and Trade-offs

Automated and autonomous machine tending systems replace manual part loading to counter skilled labor shortages and recover lost production hours. This page does not assign a universal payback window. Use the tool to flag technical blockers first, then build ROI from quoted cell cost, staffing coverage, unattended hours, downtime causes, scrap history, maintenance, and integration scope.

Cost Inputs & Payback Method

Cobot or light robot deployments: Treat cost and payback as quote-only values. Include robot, gripper, stand, controller, guarding, door automation, machine handshake, programming, risk assessment, training, and spare parts instead of using generic public price ranges.
6-axis industrial cells: Model the full system scope separately from the EOAT: pallet systems, vision, wash/air-blow, inspection stations, safety PLC, service access, fixture changes, and production ramp-up time can dominate the final investment.
Key ROI drivers: Use actual cycle logs, operator coverage, unattended hours, downtime causes, scrap or rework reduction, fixture availability, and maintenance plan. Do not estimate payback from direct labor alone.
Financial models: Compare CapEx, lease, and service-style quotes only after technical feasibility is screened. TCO should include safety validation, downtime during commissioning, maintenance labor, replacement wear items, and future part-family changeovers.

Evidence basis: Mitsubishi Electric and Universal Robots ROI guidance both treat payback as a project calculation based on quoted investment, productivity, labor, maintenance, and operating assumptions. Reviewed July 27, 2026.

Gripper Technology Selection Matrix

Magnetic (EPM): Fast, simple single-surface grip for ferrous metals. Excellent for heavy, oily, or rough cast parts. Limit: Ferrous only; attracts swarf; can leave residual magnetism.
Mechanical (Fingers): High reliability (positive retention). Best for complex geometries or non-ferrous parts. Limit: Slower cycle times; bulky in confined CNC chucks; inflexible to part variations.
Vacuum (Suction): Extremely fast cycle times for flat, non-porous surfaces (sheet metal, plastics). Limit: Fails on porous materials, heavy rust, or oily perforated surfaces. High wear on cups.

Evidence basis: gripper constraints from the calculator and validation matrix above. Confirm the final selection against the selected EOAT datasheet and sample tests.

Sizing Errors & Real Trade-Offs

Sizing Error - Reach vs. Payload: Maximum payload capacities drop significantly at maximum reach. A 10kg robot may only handle 6kg safely at full extension inside the CNC enclosure.
Sizing Error - Air Gap Disregard: Assuming laboratory holding force on dirty, oily cast parts reduces safe handling.
Trade-Off - Flexibility vs. Speed: Universal magnetic/vacuum grippers adapt to many parts but lack the sheer acceleration locking of custom mechanical jaws.

Evidence basis: engineering validation matrix on this page. Project-specific failure modes should be taken from integrator test records, not generic public claims.

Autonomous Capabilities & Cycle Efficiency

Cycle-time validation: EPM magnetic grippers can simplify approach and release paths, but autonomous cell gains must be measured against the current manual or mechanical-gripper baseline. Use project FAT/SAT logs to record load/unload seconds, door wait, chuck confirmation, vision retry, and recovery time.
Autonomous adaptation: Vision plus magnetic EOAT can support part identification and orientation for ferrous parts, but autonomy is a validated workcell behavior, not a gripper-only feature. Confirm SKU variation, retry logic, fixture feedback, and operator recovery steps before unattended use.
Retained-state safety: EPM technology requires power to switch states and may retain the magnetic state without continuous coil power. Validate stop category, diagnostics, sensors, and safe recovery behavior before treating it as a safety barrier in an unattended cell.
Quality effect: Distributed magnetic contact can reduce localized jaw marks on compatible ferrous parts, but scrap and rework impact must be tracked by SKU. Compare surface marring, misloads, chip pickup, and rejection records before and after commissioning.

Evidence basis: no universal public percentage is used for autonomous cycle gain or scrap reduction. Use dated project cycle logs, rejection records, vision retry data, and safety validation records before publishing an improvement claim. Reviewed July 27, 2026.

Operational Risks & Mitigation

Risk: Chip & Coolant Accumulation: Swarf buildup on grippers or fixtures causes part misalignment, leading to scrap or crashes.
Mitigation: Integrate automated air blow-off and wash stations before measurement.
Risk: Chuck/Vise Misalignment: Robots loading parts slightly off-center.
Mitigation: Use compliance devices (floating TCP) or vision systems to correct minor deviations before clamping.
Risk: Data Siloing (Integration Bottleneck): Robot cells operating in isolation fail to communicate production counts or scrap rates back to the plant's ERP/MES system.
Mitigation: Specify I/O handshake and OPC-UA connectivity requirements before purchasing the robot controller.

Evidence basis: ISO 10218-2 safety-family reference plus the project risk assessment, I/O handshake, and commissioning test records.

Role-Based Playbook

Actionable Next Steps for Machine Tending Integration

Custom recommendations for engineering team members to support compliance planning and reduce installation issues.

1For Mechanical & Tooling Designers

Request the 3D STEP envelope for the candidate compact, low-profile, array, or custom pole layout before freezing the robot path.
Conduct a clearance simulation inside the lathe chuck enclosure. Define the minimum workpiece stand-off past the magnetic poles from the actual chuck jaw, fixture, and wrist envelope.
For cylindrical workpieces, design custom steel V-pole adapters to bridge the magnetic circuit.

2For Robotics & Control Integrators

Configure magnetizing and demagnetizing pulse duration from the selected controller datasheet; do not assume the example timing applies to every gripper.
Program an automatic air-purge blast sequence during the exit trajectory to clean the magnetic poles of iron filings and oily coolant.
Map the emergency-stop and protective-stop logic so the robot, CNC, sensors, and gripper controller enter a validated retained or released state; do not rely on software interlock wording without a risk assessment and test record.

3For Quality Assurance & Safety Officers

Perform magnetometer inspections on processed parts to verify residual field against the customer-defined acceptance limit.
Validate robot work cell layout against ISO 10218-1/2, ensuring proper hard guarding or safety scanners are installed for automated mode.
For cobot integration, conduct a specific biomechanical risk assessment per ISO/TS 15066 to define safe contact forces for the magnetic end effector and part.
Perform a dynamic payload tear-off test (minimum 3.0x safety factor verification) before releasing the robotic cell to production.

Analysis Pitfalls

Common Misconceptions in Machine Tending Sizing

Inaccurate assumptions during the design phase lead to part drop hazards or excessive integration costs.

MYTH 01

"EPM magnets consume continuous power while holding parts"

FACT:Electro-permanent magnets behave like permanent magnets in their static holding state after a switching pulse. Pulse duration, diagnostics, and retained-hold behavior must be verified from the selected controller and gripper datasheets.

MYTH 02

"All stainless steel materials can be handled magnetically"

FACT:Only martensitic or ferritic steels have high permeability. Austenitic stainless steels like 304 and 316 are non-magnetic. Sizing for mixed production lines must incorporate mechanical or pneumatic backup jaws.

MYTH 03

"Rated nominal pull force equals actual carrying capacity"

FACT:Nominal pull is rated perpendicular to thick, clean, mild steel. In machine tending, oil, coolant, and acceleration change the shear margin, so safety factor and tear-off tests must be set for the actual part and robot path.

Frequently Asked Questions: Automated & Autonomous CNC Machine Tending

Detailed information regarding demagnetization cycles, coolant handling, safety, and CNC machine interfaces.

Applications of Automated Machine Tending Systems & Solutions

Analysis for Machine Tending

Ace CNC Integration & Clearance

Safety & Power Loss protection

Chip Management & Coolant

Material Compatibility

Engineering References & Validation Inputs

The engineering analysis and sizing calculator formulas provided on this page are modeled around the following standards families, OEM specification categories, and commissioning checks. They are references for project validation, not a page-level certification claim.

Machine Tool & Interface Standards

Ace Designers lathe inputs: Confirm chuck size, nose type, door opening, fixture depth, and controller interface from the current machine catalog and cell drawings.
ISO 9409-1 interface check: Bolt patterns for tool adapters should be checked against the selected robot wrist interface before adapter plates are released.
EN 13155:2020: Use this lifting-attachment standard as one reference when defining test loads, proof tests, and documentation for magnetic handling applications.

Quality Inspection & Test Parameters

Powertrain cleanliness plans: If residual magnetism can attract chips, define the inspection method and acceptance limit with the customer quality team.
Flux decay validation: Test actual surface roughness, oil, coolant, rust, and chip contamination because small air gaps can dominate real holding force.
ISO/TS 15066: Use collaborative robot guidance only in the context of the full application, including payload, speed, force, pinch points, guarding, and operator access.

Screening worksheet: machine-tending-eoat-rev-2026.07Last updated: July 27, 2026

Related Engineering Pages

Continue the Machine Tending EOAT Review

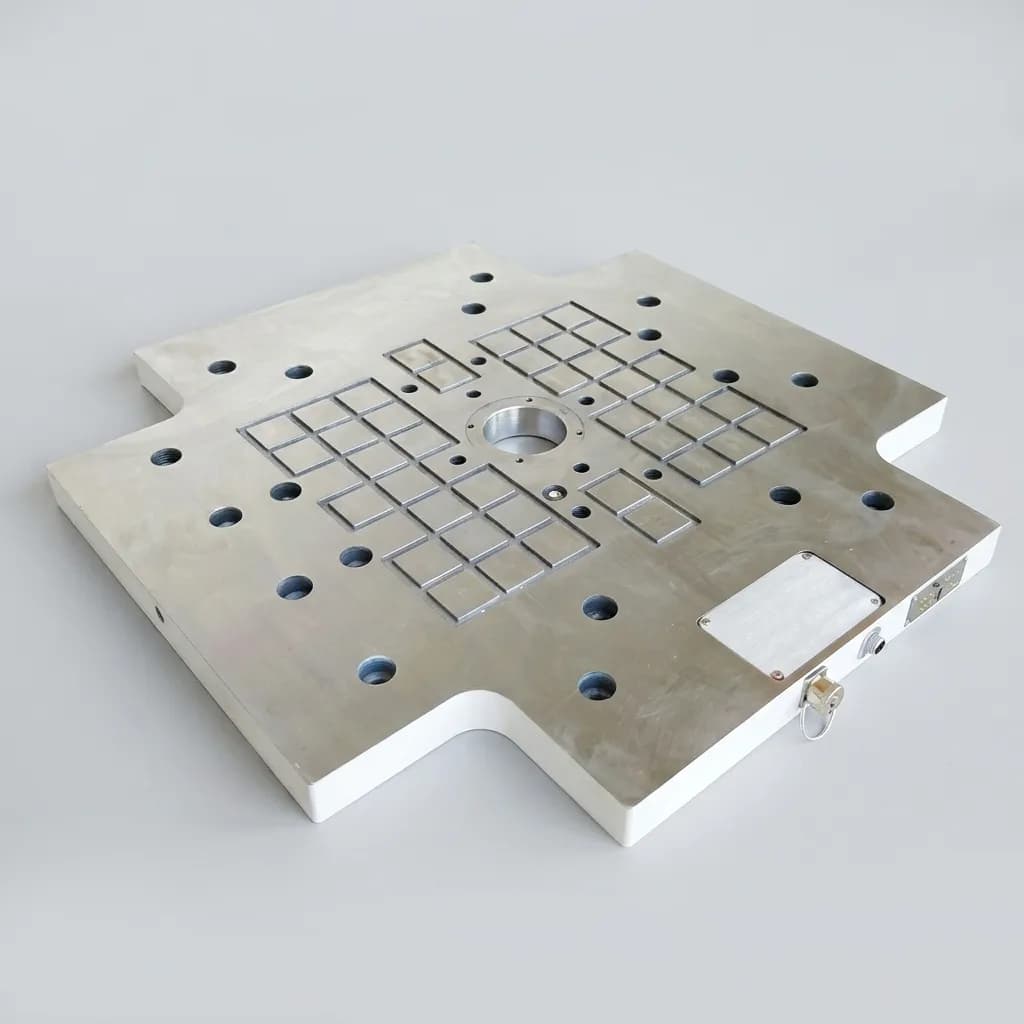

Electro-Permanent Magnetic GripperReview pulse-switched hold behavior for CNC loading cells.Open page Electromagnetic GripperCompare active on/off magnetic control for automation tooling.Open page Robot Mounting InterfaceCheck wrist adapter, bolt pattern, and EOAT envelope inputs.Open page Cobot Gripper Selection GuideMap payload, reach, safety, and gripping method constraints.Open page Robot Pick-and-PlaceCompare adjacent ferromagnetic transfer and placement use cases.Open page

Request an Application Engineering Review

Submit your workpiece drawing and cycle requirements. Our engineers will verify magnet size, pole layouts, and path clearance for your CNC machine or fixture-loading cell.

Inquiry Email

[email protected]

Email Inquiry

Please include: part weight, 3D CAD step drawing, spindle layout, and target cycle times.

Instant Chat

+86 18857971991

Chat on WhatsApp

Direct access to application engineering for quick screening feedback after you share the part and machine context.

Automated & Autonomous Machine Tending Systems: Robot Application Analyzer

Outputs force, feasibility, timing, and RFQ actions.

Shows assumptions, safety limits, and source dates.

Claim

Page Status

Verification Boundary

Required holding force

Calculated screening valueMass x 9.81 x dynamic factor x safety factor, then derated by material and surface factors selected in the calculator.

Does not replace tear-off testing on the final pole layout, contact patch, coolant state, and robot path.

Takt-time savings

Scenario modelCompares simplified magnetic front-face pickup with a mechanical finger path that needs extra chuck-clearance moves.

Actual savings depend on door timing, chuck confirmation, robot reach, safe speed limits, and fixture seating checks.

Residual field target

Quality target to define, not a universal pass/fail numberUsed as a planning prompt for magnetometer inspection after release when chips or downstream cleanliness matter.

Final acceptance limit must come from the customer quality plan, not this page.

Ace machine compatibility

Scenario-specific model-family screeningPublic Ace Micromatic product pages identify relevant lathe and VMC families to review when the selected application involves Ace equipment.

Final fit requires current machine catalog data, option lists, chuck/fixture drawings, and cell CAD; Ace coverage is a scenario example, not the page intent.

ROI and OEE effect

Project-specific business-case modelPublic robotic machine tending ROI guidance treats labor coverage, uptime, scrap/rework, safety exposure, integration cost, maintenance, and redeployment value as inputs rather than fixed page-level constants.

Use current cell cycle logs, fully burdened labor rates, downtime causes, scrap data, maintenance plan, and quoted hardware plus integration cost before making an investment decision.

Market adoption context

2024 IFR installation baselineIFR World Robotics 2025 reports 542,000 industrial robot installations in 2024 and more than 4.6 million industrial robots in operation worldwide.

The installation baseline shows automation adoption context only. It does not prove that a specific automated machine tending project is technically or financially viable.

Topic

Source

How It Is Used

Industrial robot installation baseline

IFR World Robotics 2025 press releaseChecked July 27, 2026

Provides the current public baseline that 542,000 industrial robots were installed worldwide in 2024; application fit still depends on plant-specific process data.

Robot flange interface

ISO 9409-1:2004Checked July 27, 2026

Frames adapter-plate review for circular robot wrist interfaces; final PCD and load limits come from the selected robot datasheet.

Collaborative robot safety context

ISO/TS 15066:2016Checked July 27, 2026

Supports the warning that a magnetic gripper alone does not make a cobot cell compliant.

Industrial robot cell safety context

ISO 10218-2:2025Checked July 27, 2026

Used as a current safety-family reference for robot applications and cells before plant-specific risk assessment.

Ace lathe family boundary

Ace Micromatic LT-20 C Classic product pageChecked July 27, 2026

Anchors Ace Designers LT-20 coverage, including public chuck and nose values; option, door, and fixture dimensions must still be confirmed from current project drawings.

Autonomous machine tending validation boundary

N/A - project FAT/SAT and plant cycle logs requiredEvidence gap noted July 27, 2026

No universal public cycle-speed or scrap-reduction percentage is applied. Validate autonomy with dated cycle logs, vision retry data, rejection records, and safety validation records for the specific cell.

Ace Micromatic Robotics Ecosystem

Ace Designers & Twara Robotics Strategic PartnershipChecked July 27, 2026

Confirms that Ace Micromatic actively supports cobot and robotic tending integrations through its Marketing & Service Division partnership with Twara Robotics.

Ace VMC medium table context

Ace Micromatic MCV-400 XL product pageChecked July 27, 2026

Anchors Ace Micromatic VMC coverage for fixture-loading review; actual table, pallet, and guarding options still need confirmation.

Robotic machine tending ROI method

Mitsubishi Electric US ROI equation for robotic machine tendingChecked July 27, 2026

Frames ROI as a plant-specific equation using cost, labor savings, productivity, quality, and operating assumptions instead of a universal payback claim.

Robot investment payback inputs

Universal Robots ROI and payback period guidanceChecked July 27, 2026

Supports the warning that a payback calculation should include total robot investment, accessories, integration, maintenance, and longer-term operational value.

Ace VMC large machine context

Ace Micromatic MCV-550 L product pageChecked July 27, 2026

Supports the large-VMC scenario boundary, including public table and spindle-taper context; it is not a substitute for the customer machine specification sheet.

Robot installation outlook boundary

IFR World Robotics 2025 press release outlookChecked July 27, 2026

Frames global industrial robot adoption context only. The page does not use a machine-tending-specific CAGR or universal payback claim because those require project quotes and plant data.

Workpiece Material

Holding Force Ratio

Engineering Impact & Advice

Mild Steel (1018 / 1020 / 1045)

Nominal baseline (Factor: 1.0)

Optimal magnetic circuit path. Maximum holding force achieved.

High Carbon Steel (O1 / A2 / D2)

90% (Factor: 0.9)

Slightly higher residual magnetism; requires demagnetization cycle.

Alloy Steel (4140 / 8620)

80% (Factor: 0.8)

Requires calibration of demag pulse to prevent minor part stick.

Cast Iron (Grey / Ductile)

55% (Factor: 0.55)

Internal carbon flakes interrupt flux path. Size up gripper.

Austenitic Stainless (304 / 316)

0% (Factor: 0.0)

Austenitic structure is non-magnetic. MUST use mechanical/vacuum jaws.

Operational Hazard

Risk & Impact

Engineering Mitigation Method

Surface Oil, Coolant & Inertial Slippage

Can reduce lateral shear margin. High-speed robot maneuvers can cause workpiece inertia to overcome holding force, leading to dropped parts.

Review V-groove pole layout, use a conservative safety margin in screening, add pneumatic air-blast pre-wipe where chips collect, and integrate presence-detection sensors before robot motion.

Workpiece Retaining Residual Magnetism

Sticking to downstream fixtures or attracting chips

Use an active reverse-demagnetization controller pulse. Add magnetometer QA and define the residual-field acceptance limit in the project quality plan.

Thin Sheet Co-flux Saturation (<3mm)

Double workpiece pickup hazard

Use magnetic shunts, tune switching energy from the selected controller datasheet, and add mechanical stripper pins or peeling motion during pick sequence.

Thermal Demagnetization Outside Magnet Grade Limit

Possible permanent force loss if the selected magnet grade is exposed above its rated temperature.

For hot-part tending, select the magnet material and insulation grade from the supplier datasheet and validate force after representative heat exposure.

Part Misalignment at Chuck Insertion

Defective tool seating or spindle collisions

Integrate spring-loaded compliance mechanical brackets (allowing ±2mm misalignment cushion) and tool-seated air-gap confirmation sensors.

Power Disconnection during Robot Travel

Part drop resulting in damage or injury

Evaluate electro-permanent systems that retain magnetic state without continuous coil power, then validate holding force, diagnostics, and stop behavior against the cell risk assessment.

Machine Tending Robot Market & Boundary Conditions

Automated & Autonomous CNC Machine Tending Systems & Solutions: ROI, Sizing, and Trade-offs

Automated & Autonomous Machine Tending Systems: Robot Application Analyzer

Spindle Clearance

Power-Loss Behavior

Cycle Takt Savings

Residual Field Check

Clearance Comparison & Cycle Time Analysis

B2B Engineering Report: Automated & Autonomous CNC Machine Tending & Magnetic Grippers Flux Parameters

Key Applications of Automated CNC Machine Tending

Machine Tending Robot Market & Boundary Conditions

Automated & Autonomous CNC Machine Tending Systems & Solutions: ROI, Sizing, and Trade-offs

Actionable Next Steps for Machine Tending Integration

Common Misconceptions in Machine Tending Sizing

"EPM magnets consume continuous power while holding parts"

"All stainless steel materials can be handled magnetically"

"Rated nominal pull force equals actual carrying capacity"

Frequently Asked Questions: Automated & Autonomous CNC Machine Tending

Applications of Automated Machine Tending Systems & Solutions

What are the main automated and autonomous machine tending systems and applications?

What automated and autonomous machine tending systems are covered in this analyzer?

Analysis for Machine Tending

What does a comprehensive engineering analysis for machine tending cover?

Why is a dedicated clearance analysis for machine tending crucial before selecting a gripper?

Ace CNC Integration & Clearance

Can these magnetic grippers fit on Ace Designers CNC machines for Ace machine tending?

Does Ace Micromatic support robotic tending cells natively?

What is the clearance benefit of magnetic vs mechanical jaws on Ace lathes?

How does the robot interface connect to the CNC machine controller?

Safety & Power Loss protection

What happens if the factory loses power during a robot machine tending transfer?

Is there a risk of dropping a part if the robot hits emergency stop (E-Stop)?

Do magnetic grippers comply with collaborative robot safety regulations (ISO/TS 15066)?

How do you prevent pinch and crush hazards during transport?

Chip Management & Coolant

How do steel chips and oily coolant affect magnetic holding force?

Will the magnetic gripper magnetize the spindle or the CNC machine chuck?

Can the gripper handle parts submerged in oil or high-temperature environments?

Material Compatibility

Can we tend non-magnetic materials like aluminum or brass with these systems?

What is the minimum thickness of steel plates for stable magnetic pickup?

How is residual magnetism measured on finished workpieces?

Engineering References & Validation Inputs

Machine Tool & Interface Standards

Quality Inspection & Test Parameters

Continue the Machine Tending EOAT Review

Request an Application Engineering Review

Automated & Autonomous Machine Tending Systems: Robot Application Analyzer

Spindle Clearance

Power-Loss Behavior

Cycle Takt Savings

Residual Field Check

Clearance Comparison & Cycle Time Analysis

B2B Engineering Report: Automated & Autonomous CNC Machine Tending & Magnetic Grippers Flux Parameters

Key Applications of Automated CNC Machine Tending

Machine Tending Robot Market & Boundary Conditions

Automated & Autonomous CNC Machine Tending Systems & Solutions: ROI, Sizing, and Trade-offs

Actionable Next Steps for Machine Tending Integration

Common Misconceptions in Machine Tending Sizing

"EPM magnets consume continuous power while holding parts"

"All stainless steel materials can be handled magnetically"

"Rated nominal pull force equals actual carrying capacity"

Frequently Asked Questions: Automated & Autonomous CNC Machine Tending

Applications of Automated Machine Tending Systems & Solutions

What are the main automated and autonomous machine tending systems and applications?

What automated and autonomous machine tending systems are covered in this analyzer?

Analysis for Machine Tending

What does a comprehensive engineering analysis for machine tending cover?

Why is a dedicated clearance analysis for machine tending crucial before selecting a gripper?

Ace CNC Integration & Clearance

Can these magnetic grippers fit on Ace Designers CNC machines for Ace machine tending?

Does Ace Micromatic support robotic tending cells natively?

What is the clearance benefit of magnetic vs mechanical jaws on Ace lathes?

How does the robot interface connect to the CNC machine controller?

Safety & Power Loss protection

What happens if the factory loses power during a robot machine tending transfer?

Is there a risk of dropping a part if the robot hits emergency stop (E-Stop)?

Do magnetic grippers comply with collaborative robot safety regulations (ISO/TS 15066)?

How do you prevent pinch and crush hazards during transport?

Chip Management & Coolant

How do steel chips and oily coolant affect magnetic holding force?

Will the magnetic gripper magnetize the spindle or the CNC machine chuck?
