1. Bench pickup check
Start with representative parts, including the worst expected surface condition. Check pickup contact, peel risk, air gap, and any stacked-part behavior before approving the gripper concept.
← Back to Products
Electromagnetic Gripper
Electrically switched magnetic gripping for automation projects that need active on/off control.
Target Buyer:Best for machine builders and integrators comparing magnetic gripping with vacuum, clamp, or mechanical pickup methods.
Capability Highlights
- Direct electrical control
- Compact layouts for automation tooling
- Suitable for review-driven custom holding needs
Typical Applications
- Small metal part handling
- Machine tending
- Fixture loading
- Short-cycle transfer automation
Engineering Focus
- Power supply and duty-cycle review
- Heat rise and holding duration
- Workpiece thickness and contact flatness
- Control signal and release requirements
Electromagnetic Gripper Buyer Decision Framework
Treat electromagnetic gripper as a complete handling decision, not a stand-alone magnet purchase. The right choice depends on whether the workpiece can be held magnetically, whether the robot motion keeps enough margin, whether the part releases cleanly, and whether the installation scope is clear enough for quotation.
Buyer fit: Best for machine builders and integrators comparing magnetic gripping with vacuum, clamp, or mechanical pickup methods. Before comparing price, align the practical constraints below so the quote reflects the real automation cell instead of a generic catalog condition.
| Decision Area | Buyer Question | Practical Evidence |
|---|---|---|
| Workpiece fit | Can the magnetic poles contact enough real surface area under production conditions? | Send workpiece material, part weight, and magnetic response confirmation plus photos or drawings of the pickup face. |
| Motion margin | Will the gripper hold through acceleration, rotation, off center pickup, and stop conditions? | Review duty cycle because electromagnets require duty-cycle review to avoid heat-related performance drift. |
| Release behavior | Can the part release within the placement tolerance without residual magnetism, double pickup, or stack disturbance? | Define sample acceptance criteria around power and control and record the release test result before batch release. |
| Interface scope | Are the flange, adapter, cable, connector, controller, and documentation assumptions included in the same RFQ? | Confirm power supply and duty-cycle review and list any custom mounting or control requirements before PO release. |
Validation Plan Before product selection
2. Robot-path check
Test the planned orientation, acceleration, tool center, cable route, and stop assumptions. A static lift is not enough when the cell includes fast motion or rotated handling.
3. Release and repeat run
Measure release timing, residual magnetism, placement tolerance, and repeatability across a small run. Use the result to freeze pole layout, interface, and quality-control notes.
Procurement Notes and Boundaries
The most common sourcing mistake is treating holding force as a fixed catalog value. In practice, heat buildup from extended energizing reduces holding force and damages insulation. Review duty cycle, ambient temperature, and thermal path before specifying the electromagnet for continuous or high-frequency use. Another common issue is that power interruption causes immediate workpiece drop with no residual holding. Plan for power-loss scenarios with guarding, mechanical backup, or process interlocks where drop risk is unacceptable.
For a quote that can move from engineering review to procurement, include the workpiece file set, automation interface, cycle target, release requirement, quantity, destination, and any custom packaging or documentation needs. If those values are not final, mark them as assumptions so the quotation can separate confirmed scope from validation-dependent scope.
- Use Contact / RFQ when drawings, photos, robot model, and quantity are ready for review.
- Review sample validation and quality control if the application includes coating, oil, burrs, stack variation, or release precision risk.
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Duty cycle | Defined by energizing time and thermal review | Electromagnets require duty-cycle review to avoid heat-related performance drift. |
| Power and control | Matched to available machine or robot signals | Electrical compatibility affects integration cost and commissioning risk. |
RFQ Checklist
- Workpiece material, part weight, and magnetic response confirmation
- Energizing duration per cycle, total daily duty hours, and ambient temperature
- Available voltage, current capacity, and control signal type at the machine
- Mounting space envelope, cable exit direction, and heat dissipation clearance
- Quantity, duty-cycle profile, destination, and any IP rating requirements
Risk Controls
- Heat buildup from extended energizing reduces holding force and damages insulation.: Review duty cycle, ambient temperature, and thermal path before specifying the electromagnet for continuous or high-frequency use.
- Power interruption causes immediate workpiece drop with no residual holding.: Plan for power-loss scenarios with guarding, mechanical backup, or process interlocks where drop risk is unacceptable.
- Voltage mismatch or undersized wiring causes slow response or unreliable switching.: Confirm supply voltage, current rating, wire gauge, and connector compatibility before installation.

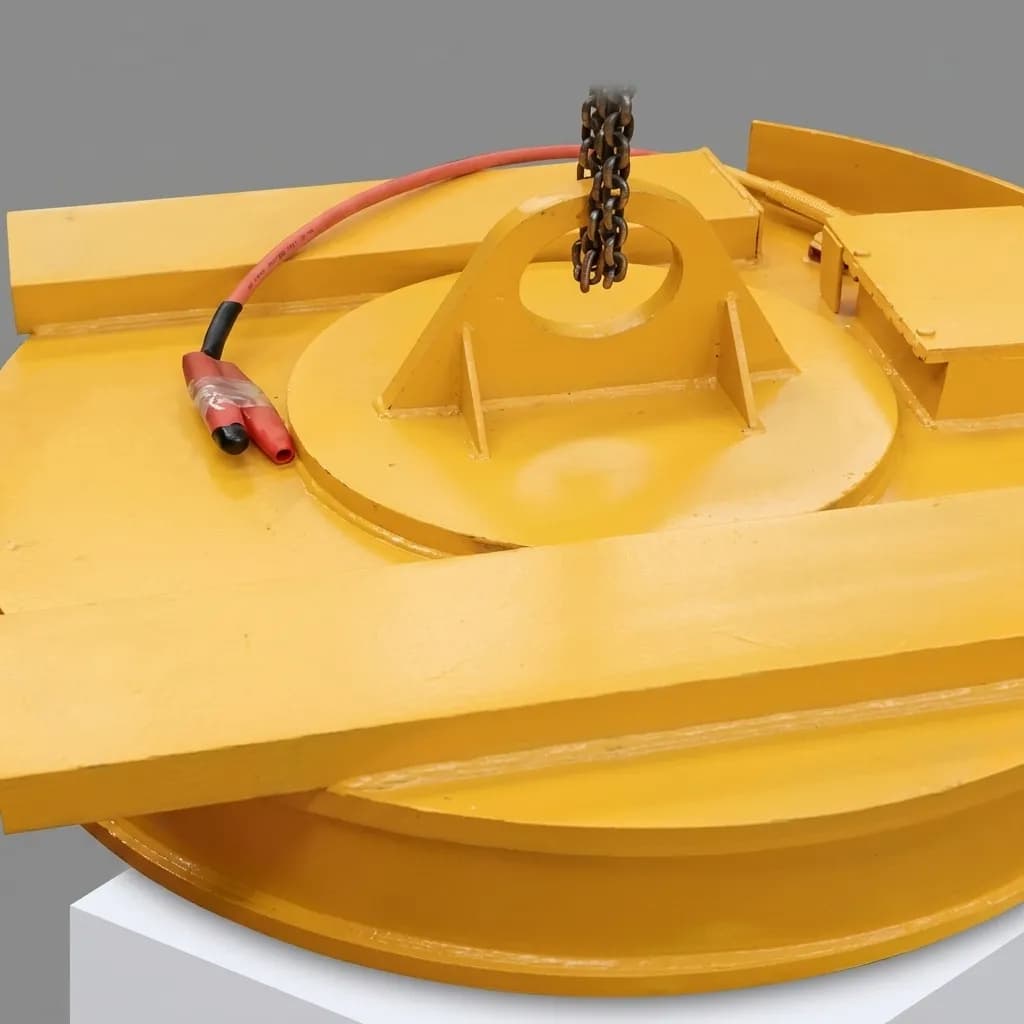

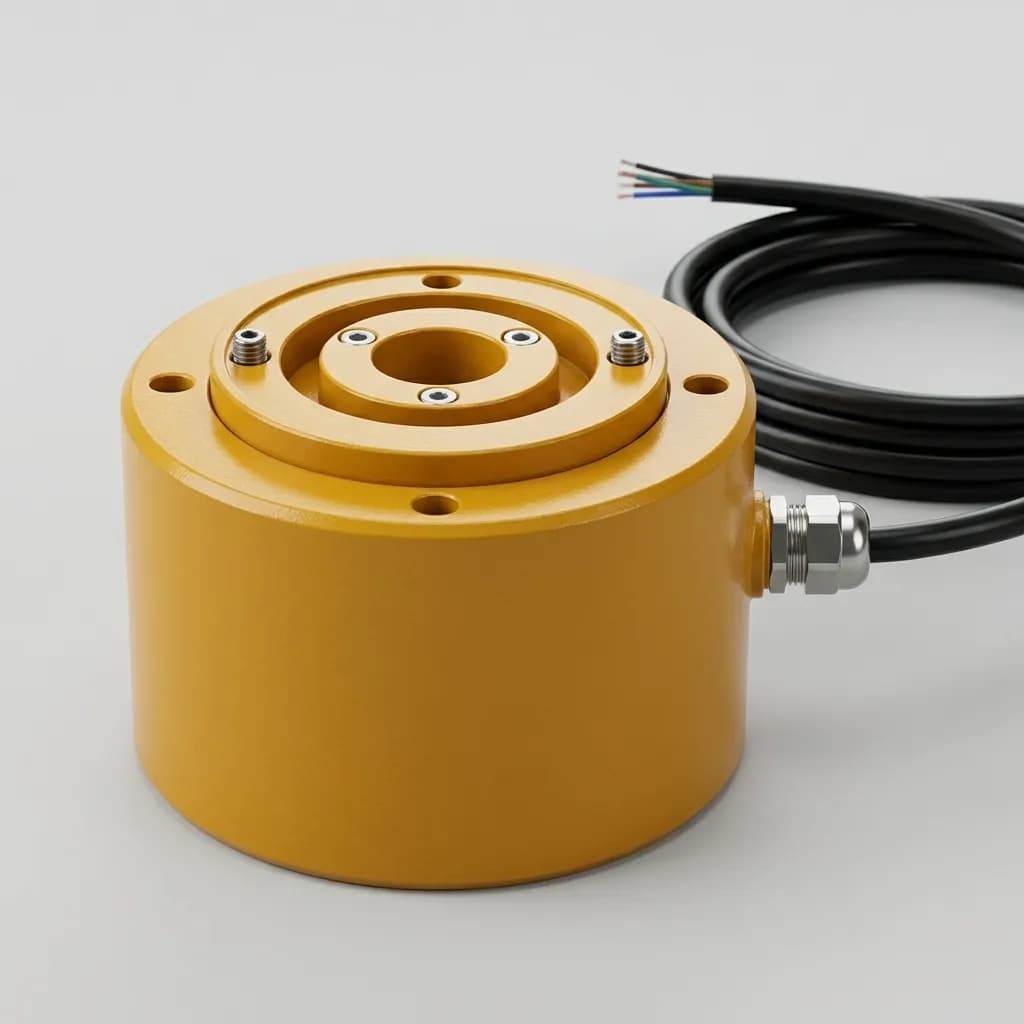

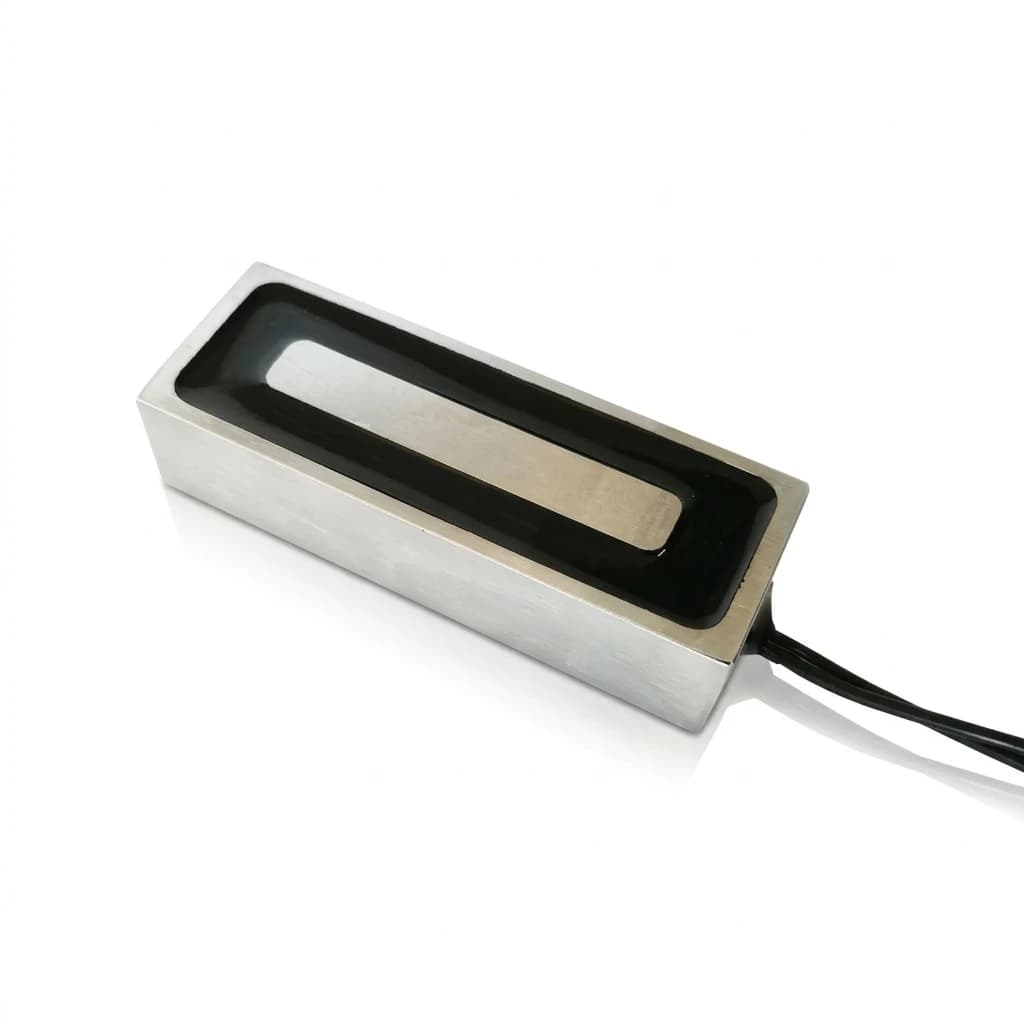

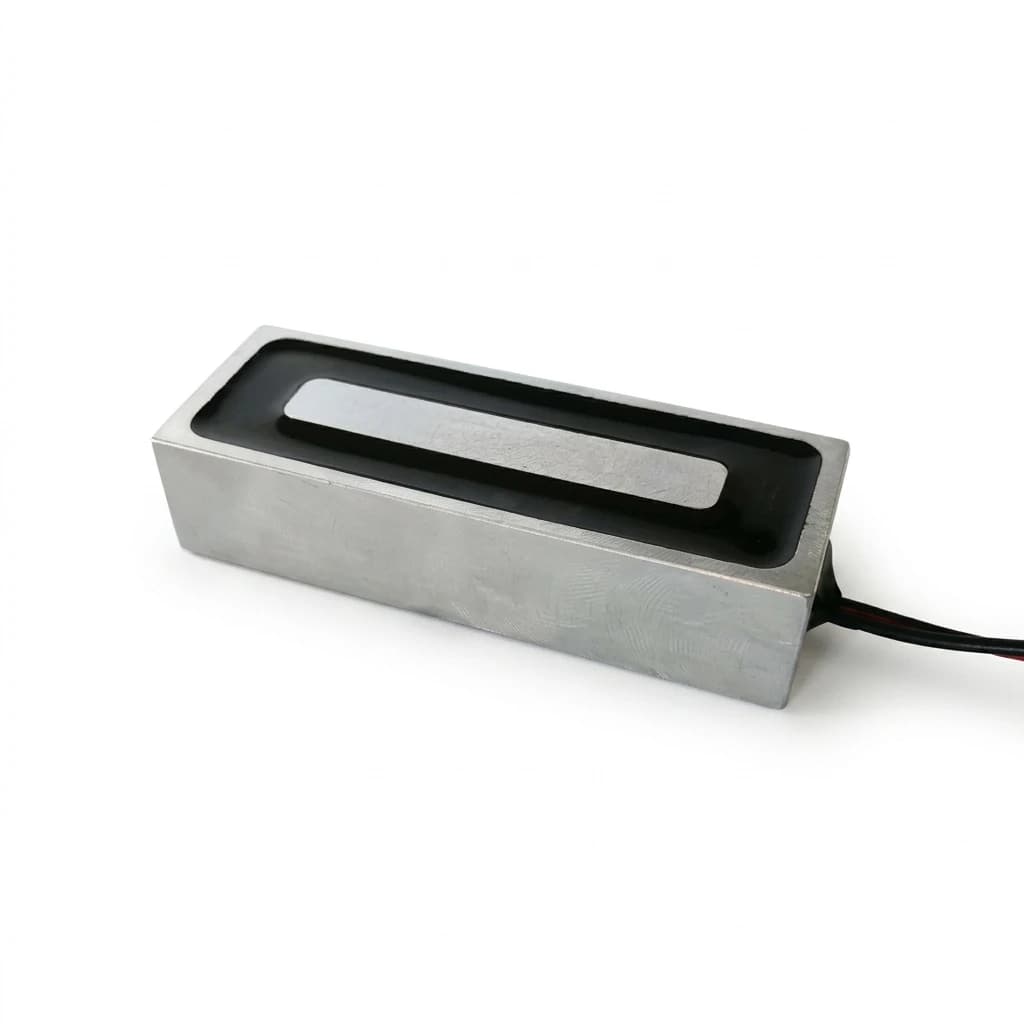

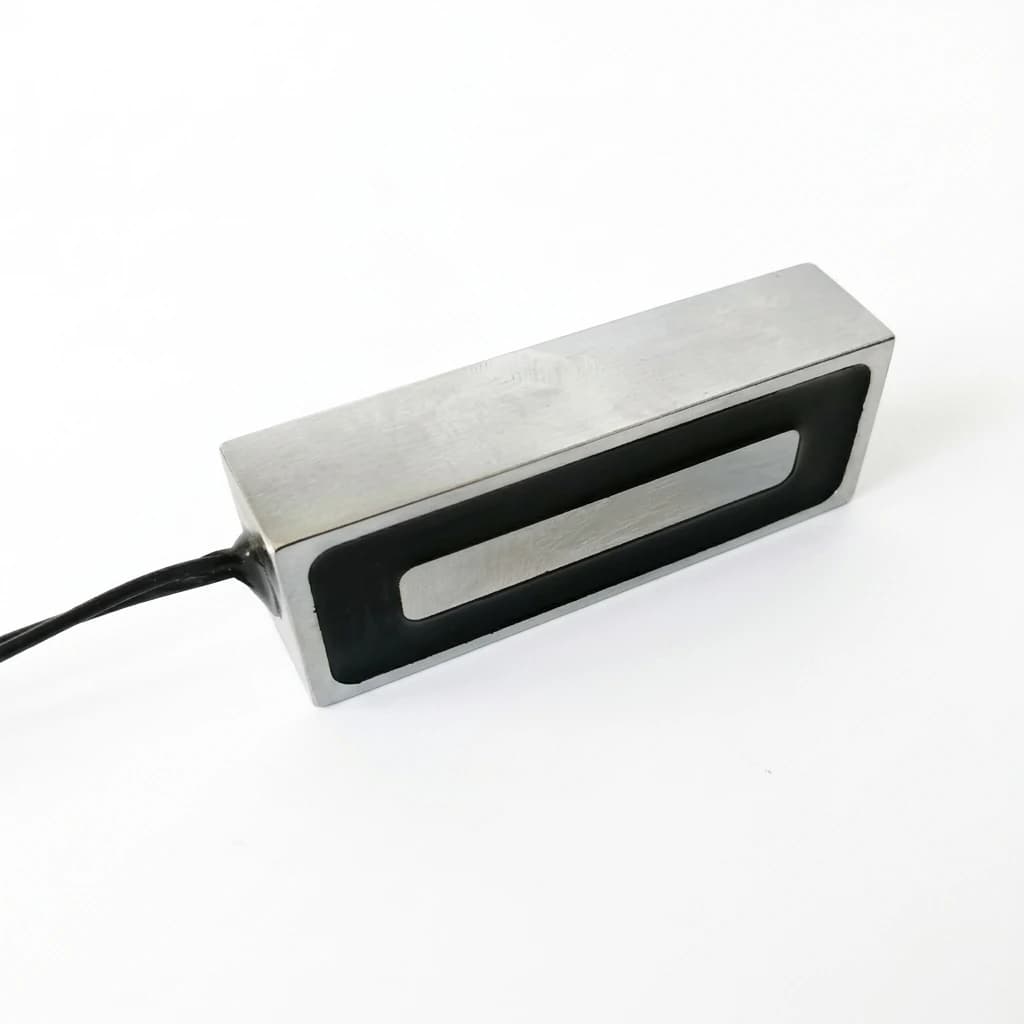

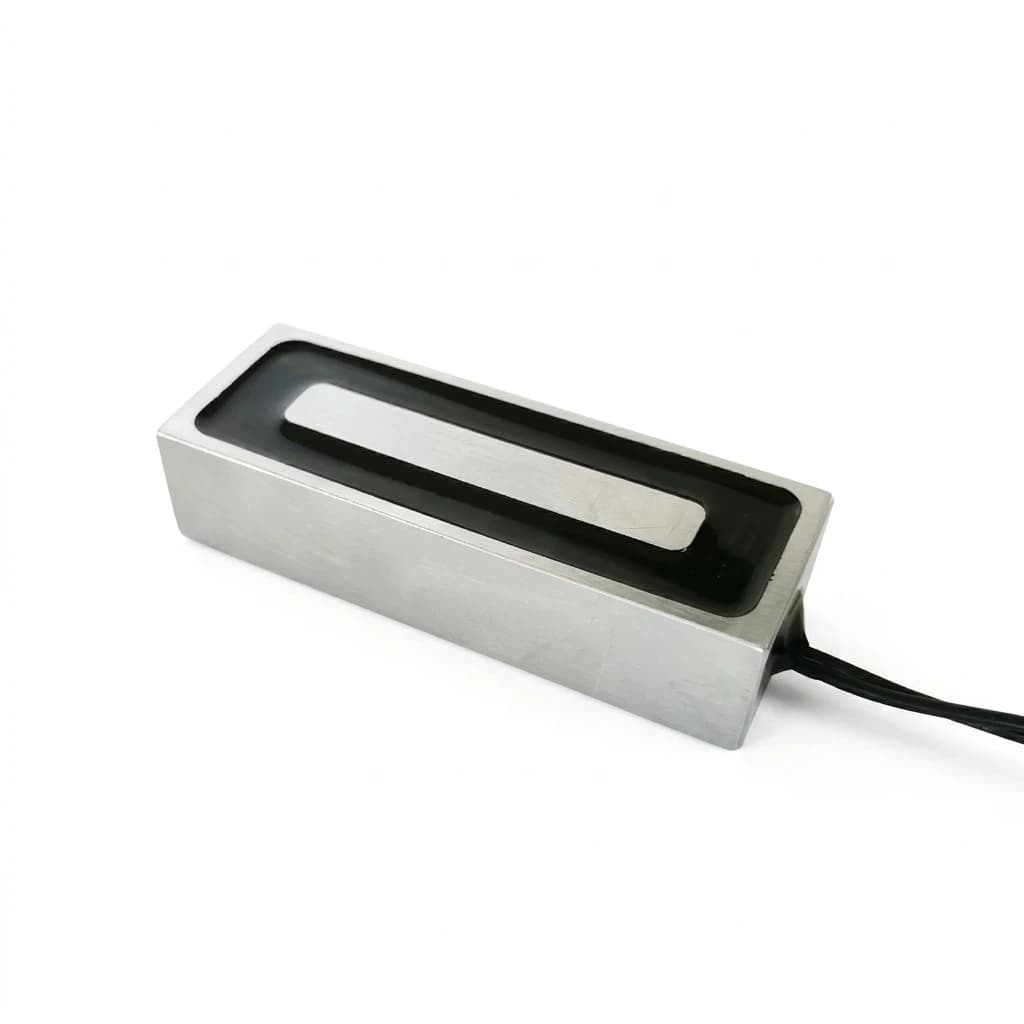

Product Gallery
Buyer FAQ
What happens if power is lost during an electromagnetic grip?
The workpiece releases immediately because an electromagnet requires continuous power to hold. If drop risk is a concern, consider electro-permanent designs or add mechanical backup.
How long can an electromagnet stay energized?
It depends on the duty-cycle rating and thermal design. Continuous energizing without adequate heat management can degrade force and damage insulation. Send your cycle timing for review.
Is an electromagnetic gripper better than an electro-permanent one?
Neither is universally better. Electromagnets offer simple on/off control; electro-permanent designs can hold after switching. Choose based on duty cycle, hold duration, safety, and release requirements.
