1. Bench pickup check
Start with representative parts, including the worst expected surface condition. Check pickup contact, peel risk, air gap, and any stacked-part behavior before approving the gripper concept.
← Back to Products
Cobot Magnetic Gripper
Compact magnetic gripping options for collaborative robot cells handling ferromagnetic parts.
Target Buyer:Best for teams using collaborative robots where compact size, low tooling weight, and simple integration matter.
Capability Highlights
- Compact tooling review for cobot payload limits
- Custom mounting and cable options
- Designed for simple integration discussions
Typical Applications
- Cobot machine tending
- Light part transfer
- Fixture loading
- Flexible manufacturing cells
Engineering Focus
- Cobot payload and tool center of gravity
- Operator interaction and guarding assumptions
- Quick setup, cable route, and control signal
- Part release and placement repeatability
Cobot Magnetic Gripper Buyer Decision Framework
Treat cobot magnetic gripper as a complete handling decision, not a stand-alone magnet purchase. The right choice depends on whether the workpiece can be held magnetically, whether the robot motion keeps enough margin, whether the part releases cleanly, and whether the installation scope is clear enough for quotation.
Buyer fit: Best for teams using collaborative robots where compact size, low tooling weight, and simple integration matter. Before comparing price, align the practical constraints below so the quote reflects the real automation cell instead of a generic catalog condition.
| Decision Area | Buyer Question | Practical Evidence |
|---|---|---|
| Workpiece fit | Can the magnetic poles contact enough real surface area under production conditions? | Send cobot brand, model, payload class, flange type, and tool i/o availability plus photos or drawings of the pickup face. |
| Motion margin | Will the gripper hold through acceleration, rotation, off center pickup, and stop conditions? | Review tool weight because cobot payload limits make every bracket, cable, and gripper gram important. |
| Release behavior | Can the part release within the placement tolerance without residual magnetism, double pickup, or stack disturbance? | Define sample acceptance criteria around installation simplicity and record the release test result before batch release. |
| Interface scope | Are the flange, adapter, cable, connector, controller, and documentation assumptions included in the same RFQ? | Confirm cobot payload and tool center of gravity and list any custom mounting or control requirements before PO release. |
Validation Plan Before product selection
2. Robot-path check
Test the planned orientation, acceleration, tool center, cable route, and stop assumptions. A static lift is not enough when the cell includes fast motion or rotated handling.
3. Release and repeat run
Measure release timing, residual magnetism, placement tolerance, and repeatability across a small run. Use the result to freeze pole layout, interface, and quality-control notes.
Procurement Notes and Boundaries
The most common sourcing mistake is treating holding force as a fixed catalog value. In practice, gripper mass plus adapter consumes too much of the cobot payload, leaving no margin for the workpiece. Weigh the full tool stack and compare against the cobot datasheet at the actual reach distance, not only at the wrist. Another common issue is that operator interaction assumptions are not validated for collaborative operation. Review ISO/TS 15066 force and pressure limits for the gripper edges, workpiece, and any exposed magnetic surfaces near the operator.
For a quote that can move from engineering review to procurement, include the workpiece file set, automation interface, cycle target, release requirement, quantity, destination, and any custom packaging or documentation needs. If those values are not final, mark them as assumptions so the quotation can separate confirmed scope from validation-dependent scope.
- Use Contact / RFQ when drawings, photos, robot model, and quantity are ready for review.
- Review sample validation and quality control if the application includes coating, oil, burrs, stack variation, or release precision risk.
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Tool weight | Minimized against required holding force | Cobot payload limits make every bracket, cable, and gripper gram important. |
| Installation simplicity | Configured around the selected cobot interface | A clear mounting and wiring plan reduces setup time in flexible cells. |
RFQ Checklist
- Cobot brand, model, payload class, flange type, and tool I/O availability
- Workpiece material, weight, pickup face area, and surface condition
- Cell layout: operator proximity, guarding approach, and collaborative mode
- Desired setup time, programming interface, and changeover flexibility
- Quantity, project timeline, and whether tool-changer compatibility is needed
Risk Controls
- Gripper mass plus adapter consumes too much of the cobot payload, leaving no margin for the workpiece.: Weigh the full tool stack and compare against the cobot datasheet at the actual reach distance, not only at the wrist.
- Operator interaction assumptions are not validated for collaborative operation.: Review ISO/TS 15066 force and pressure limits for the gripper edges, workpiece, and any exposed magnetic surfaces near the operator.
- Frequent changeover introduces setup errors that affect pickup or release reliability.: Design the mounting and cable interface for tool-free or quick-change installation with repeatable alignment.

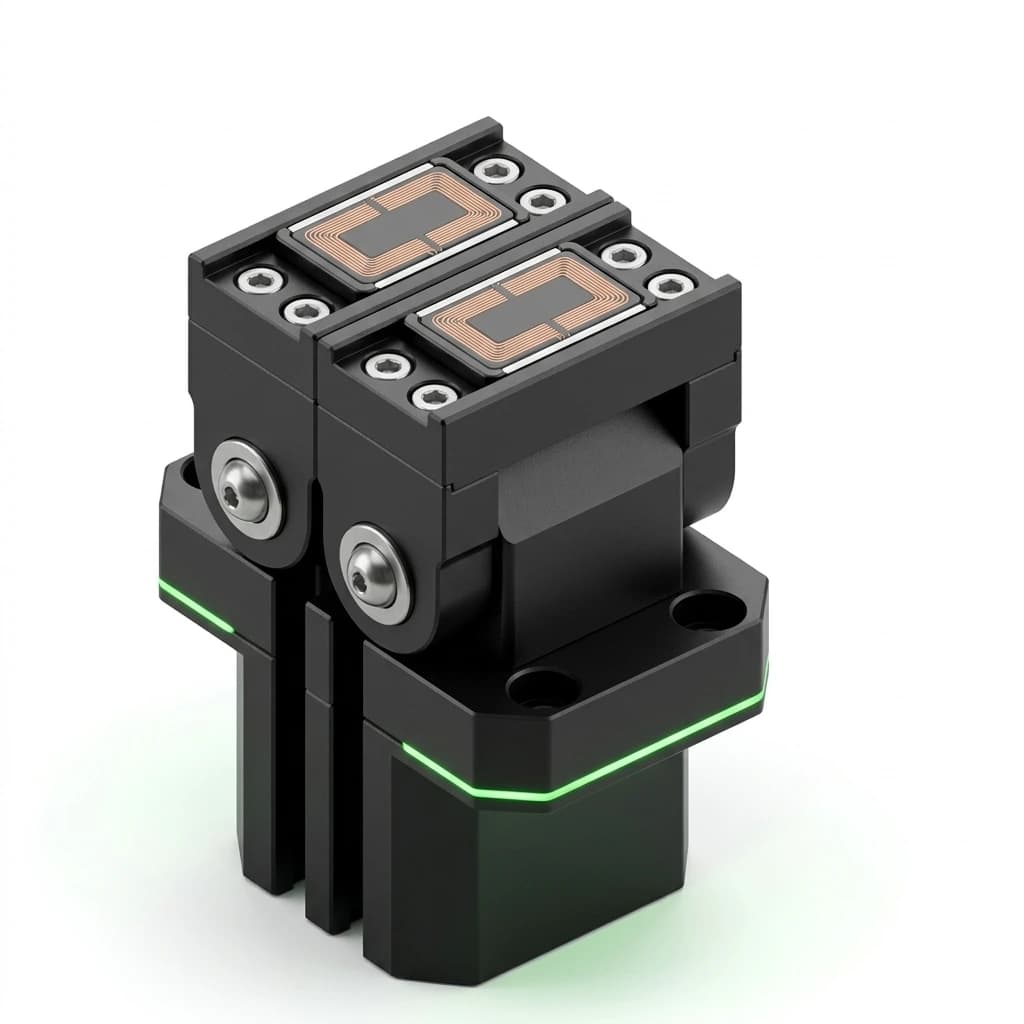

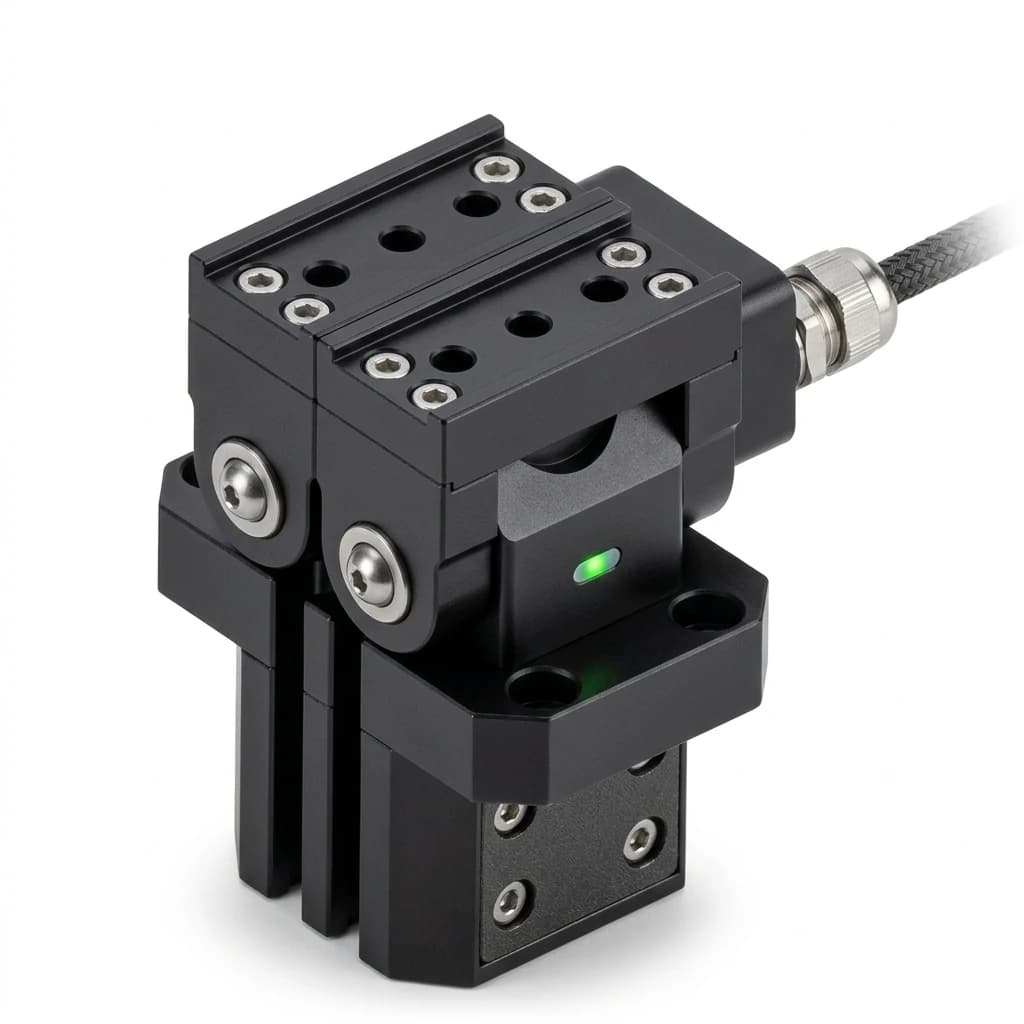

Product Gallery
Buyer FAQ
Can a magnetic gripper fit on a Universal Robots cobot?
Yes, with the correct adapter plate and I/O mapping. Send the UR model, available tool ports, and workpiece details for a compatibility review.
Is a magnetic cobot gripper safe near operators?
Safety depends on the cell risk assessment, not only the gripper type. Magnetic grippers must be reviewed for edge sharpness, pinch points, workpiece drop risk, and collaborative speed limits.
How heavy is a typical cobot magnetic gripper?
Compact designs start under 1 kg for the magnetic module alone. The total EOAT weight includes the adapter plate, cable, and connector, which must stay within the cobot payload limit at operating reach.
